Top bar

The top bar contains some essential information for the navigation.

images/download/attachments/128155691/CVS_FMDReview_TopBar2_EN.PNG

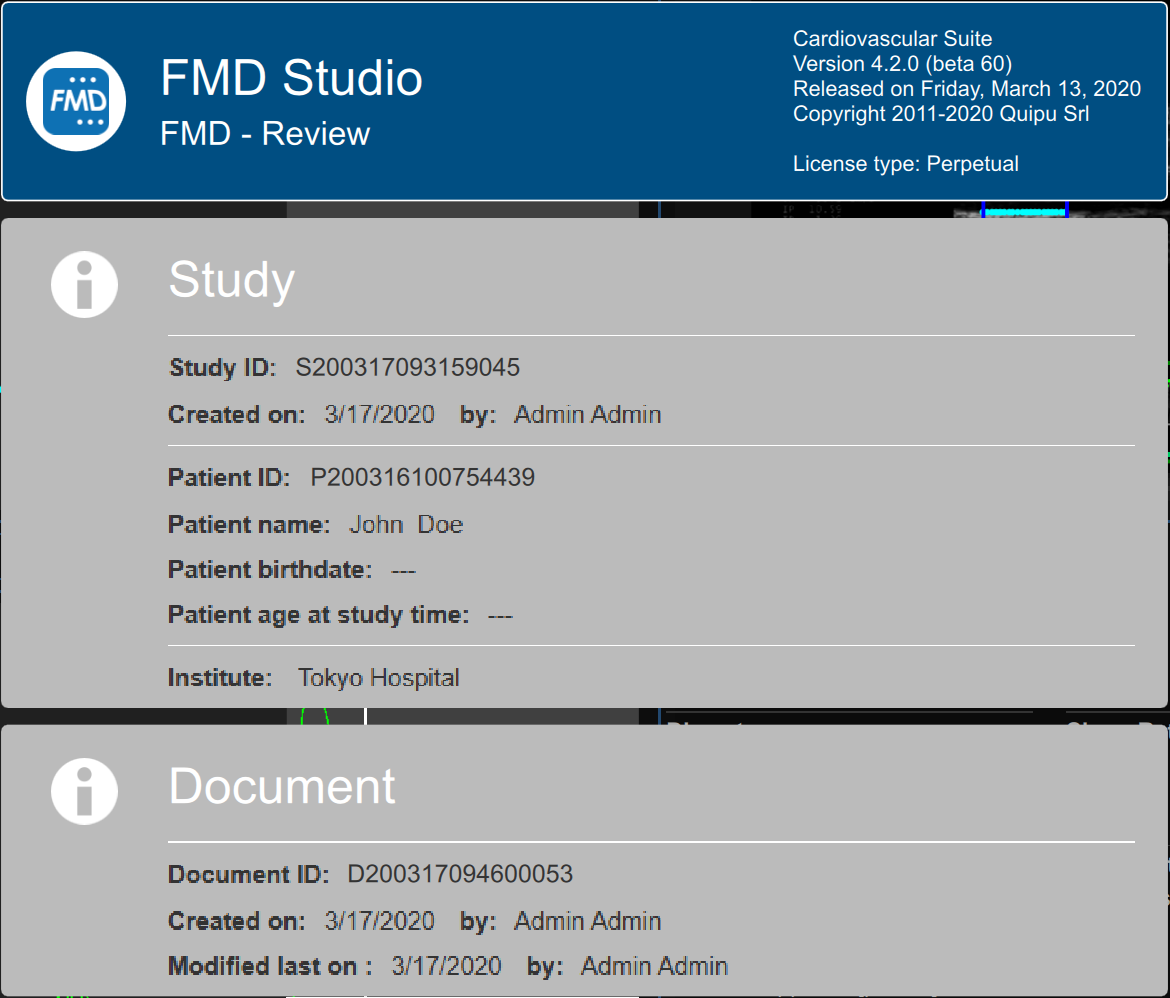

The FMD Studio images/download/thumbnails/128155691/cvs_fmd_icon.png button shows a panel containing some information about Cardiovascular Suite, about the current study and the current document. Regarding the study, the study ID is displayed together with information about the patient and the institute. In addition, info regarding the current document are provided. Information about the software, such as version and type of license, are shown in the upper part of the panel.

images/download/attachments/128155691/CVS_FMDReview_InfoPanel_EN.png

The Home images/download/thumbnails/128155691/cvs_home_button.png button closes the FMD Studio application and returns to the home screen of Cardiovascular Suite. The back images/download/thumbnails/128155691/cvs_back_button.png button closes the FMD Studio application and comes back to the Archive.

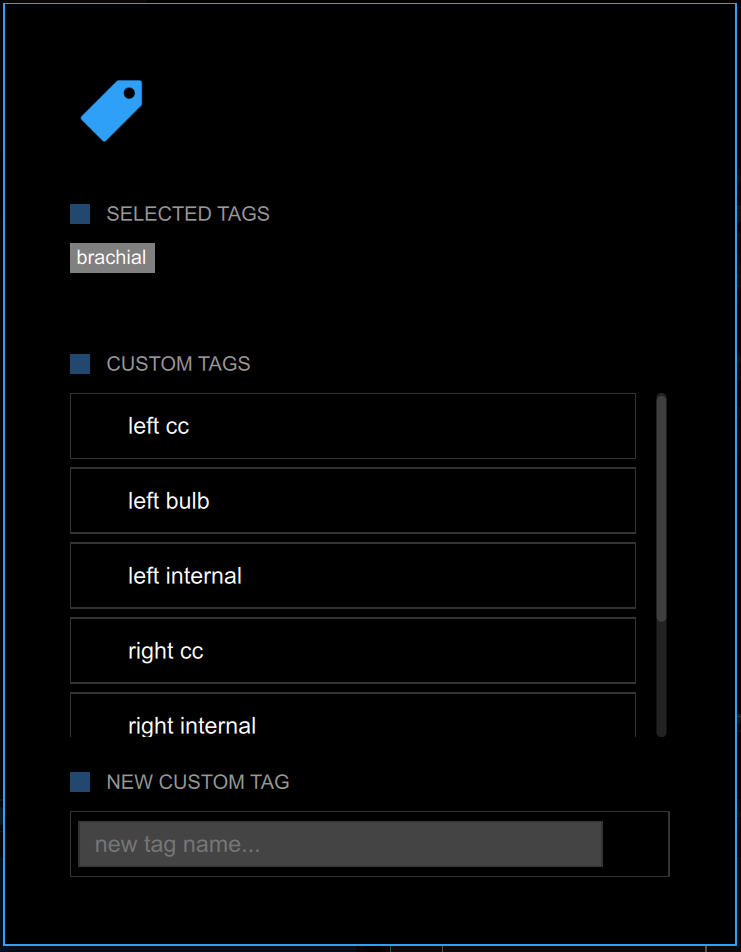

The Tags Management images/download/thumbnails/128155691/cvs_tag_button.png button opens a panel (see the following picture) that allows to create a new tag and associate it or an existing tag to the document. Tags can be managed through the Tags management into the Archive.

images/download/attachments/128155691/CVS_FMDReview_Tags3_EN.PNG

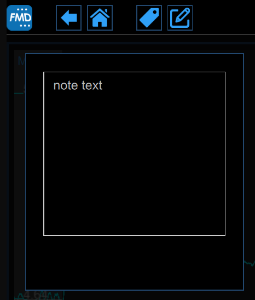

The Notes images/download/thumbnails/128155691/cvs_notes_button.png button can be used to enter a note in the document.

images/download/thumbnails/128155691/CVS_FMDReview_Notes_EN.PNG

The Save images/download/thumbnails/128155691/cvs_save_button.png button is used to save your changes to the document once you have edited the data.

The Delete the document images/download/thumbnails/128155691/cvs_trash_button.png button is used to delete the current document.

The Export images/download/thumbnails/128155691/cvs_exportDocument_button.png button is used to export your data. You can export the Document Results and the Document Data.

The Document Results contains all the results of the analysis and all the information about the study, the document, and the patient.

The Document Data contains all the Document Results, a list of the Mean Diameter, the Shear Rate, and the Doppler Velocity (one value per second) and the Diameter and the Doppler Velocity values computed at each frame.

Only the diameter values are actual instantaneous values because they are computed on the single images. The Doppler Velocity is actually a Time averaged value. In fact, despite it is calculated on the single image, it is computed in the time interval defined by the Doppler flow ROI. For more info, please see Doppler flow analysis.
