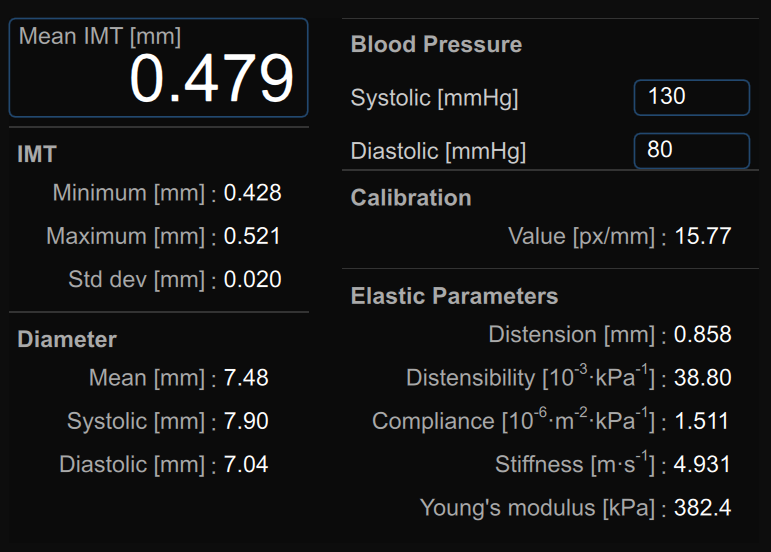

Results panel

images/download/attachments/34047859/CVS_Carotid_CineloopReview_Result_EN.png

The panel shows the results of the analysis. The following data are displayed:

  • Calibration value [px/mm]

  • Mean IMT [mm]: Intima Media Thickness. It is computed as an average value of the data present in the IMT chart.

  • Minimum IMT [mm]: minimum value of Intima Media Thickness. It is computed on the data present in the IMT chart.

  • Maximum IMT [mm]: maximum value of Intima Media Thickness. It is computed on the data present in the IMT chart.

  • Std. dev IMT [mm]: standard deviation of Intima Media Thickness. It is computed on the data present in the IMT chart.

  • Mean diameter [mm]: value of the average diameter. It is computed as an average value of the diameter data present in the Diameter chart.

  • Systolic diameter [mm]: value of the diameter in systole. It is computed as an average value of the systolic diameters present in the Diameter chart.

  • Diastolic diameter [mm]: value of the diameter in diastole. It is computed as an average value of the diastolic diameters present in the Diameter chart.

  • Blood pressure [mmHg]: diastolic pressure and systolic pressure.

  • Distension [mm]: stroke change in diameter.
    images/download/thumbnails/34047859/CVS_Carotid_CineloopReview_Equation_Distension.png

  • Compliance [10-6·m2·kPa-1]: absolute change in lumen area for a given pressure change.
    images/download/thumbnails/34047859/CVS_Carotid_CineloopReview_Equation_Compliance.png

  • Distensibility [10-3· kPa-1]: relative change in lumen area during systole for a given pressure change.
    images/download/thumbnails/34047859/CVS_Carotid_CineloopReview_Equation_Distensibility.png

  • Carotid Stiffness [m·s-1]: Stiffness value computed by Bramwell-Hill equation.
    images/download/attachments/34047859/CVS_Carotid_CineloopReview_Equation_Stiffness.png

  • Young’s elastic modulus [kPa]:
    images/download/attachments/34047859/CVS_Carotid_CineloopReview_Equation_YoungMod.png
    where:

De = External Diameter (between the media-adventitia interfaces) measured in diastole.

Di = Internal Diameter (between the lumen-intima interfaces) measured in diastole.

Ds = Systolic Diameter (external).

Dd = Diastolic Diameter (external), Dd = De

WCSA = Wall Cross Section Area

images/download/thumbnails/34047859/CVS_Carotid_CineloopReview_Equation_WCSA.png

ΔA = Stroke change in lumen area.
images/download/thumbnails/34047859/CVS_Carotid_CineloopReview_Equation_DA.png

Ad = Diastolic Area.

images/download/thumbnails/34047859/CVS_Carotid_CineloopReview_Equation_AD.png

Ps = Systolic Pressure.

Pd = Diastolic Pressure.

ΔP = Ps - Pd

ρ = Blood density: is assumed to be constant and equal to 1.06 g/cm3.

These data can be exported in the Document Data. See here for export details.
