IMT chart

images/download/attachments/34047853/CVS_Carotid_CineloopReview_IMTChart.png

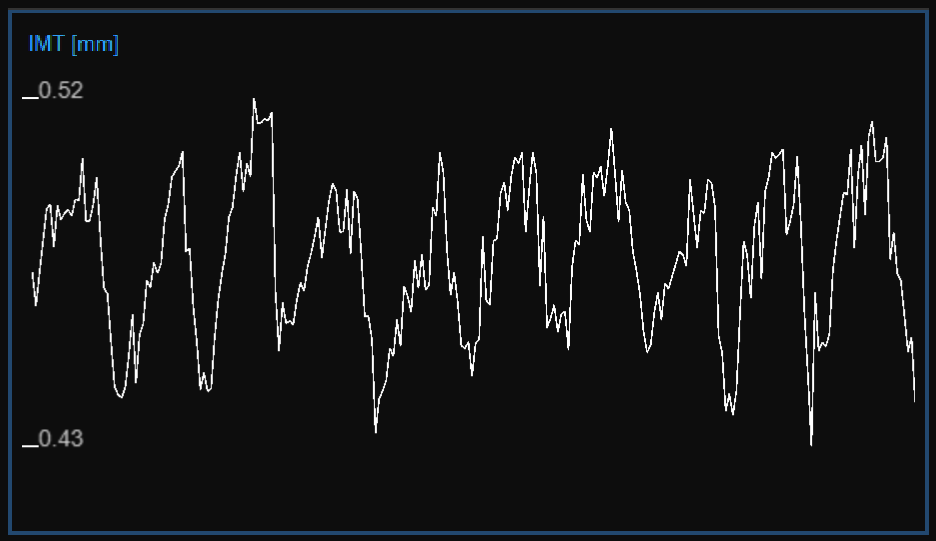

The chart shows the trend of the IMT. The buttons at the top can be used for editing the chart and removing the outliers.

Remove the outliers

  • Click on the Cut images/download/thumbnails/34047853/cvs_cut_button.png button.

  • In the IMT chart, click on one of the two extremes of the range to be deleted.

  • Drag the mouse horizontally to the other extreme of the range to be deleted.

  • Once you have removed the outliers, the data on the Results panel will be automatically updated.

You can use the undo images/download/thumbnails/34047853/cvs_undo.png and redo images/download/thumbnails/34047853/cvs_redo.png buttons to cancel and restore your changes. The restore images/download/thumbnails/34047853/cvs_restore_button.png button cancels all your changes and restore original data.

Note: Click on the Save images/download/thumbnails/34047853/cvs_save_button.png button in the Top bar to save your changes to the document.

Graph cursors

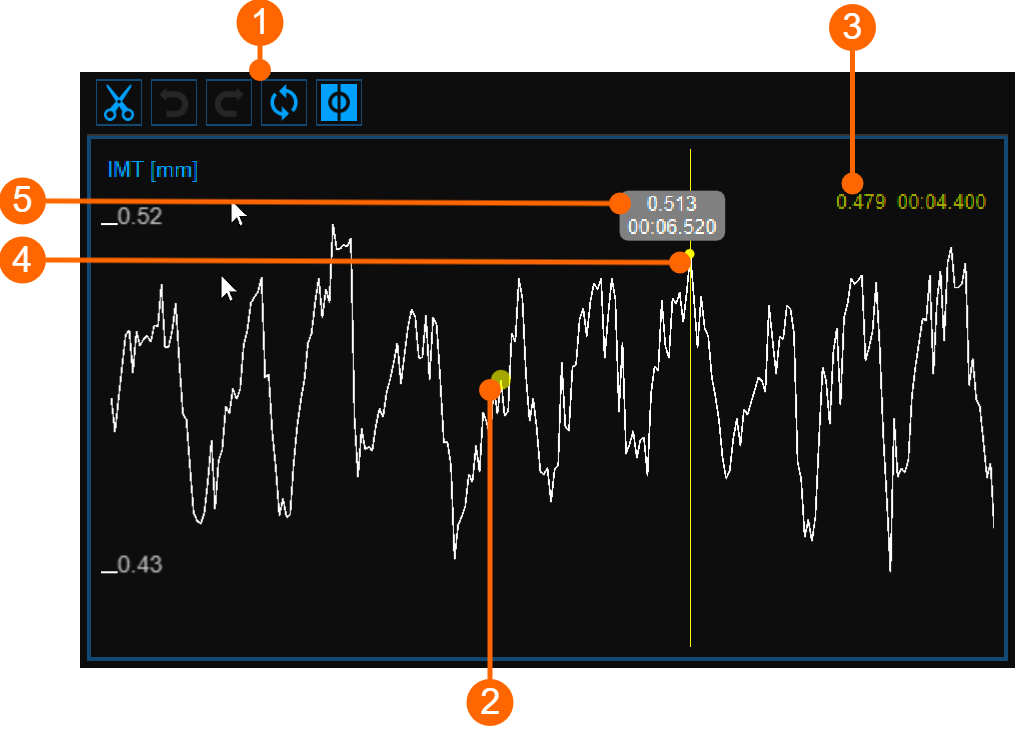

As shown in the following figure, the Cursor images/download/thumbnails/34047853/cvs_cursor_button.png button (1) activates a cursor (2) on the IMT chart that shows the current time position on the graph according to the images shown in the Video window. The coordinates (IMT value in millimeters and time value in the format minutes:seconds.milliseconds) of the cursor are dynamically updated and shown in (3). When the Cursor button is active, it is also possible to know the coordinates of an exact point in the graph; it is only needed to hover over the chart and a second cursor (4) is displayed. It follows the mouse movements and the exact coordinates of the point are shown in the label (5) (IMT value is expressed in millimeters and the time value has the format minutes:seconds.milliseconds).

images/download/attachments/34047853/cvs_IMTchart_cineloopReview_gliffy_EN.png
