Connecting your computer to the ultrasound system
You need a video capture device to connect the computer with the ultrasound system and perform real-time analysis. Quipu recommends two USB devices: the Epiphan AV.io HD or the Magewell USB Capture AIO.

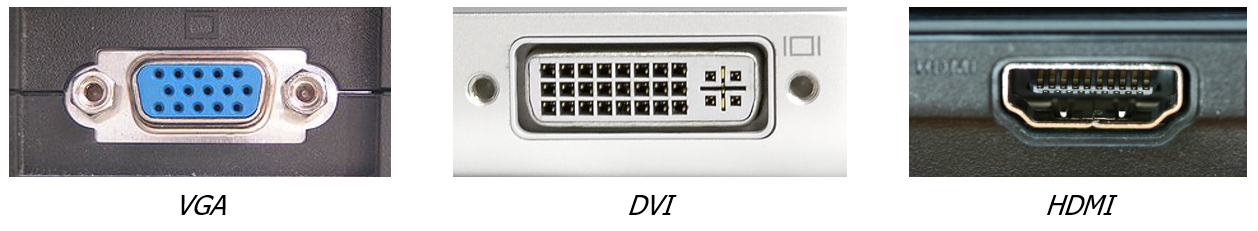

If your ultrasound machine has a VGA/DVI/HDMI output (see next figure for reference), you can directly connect your ultrasound machine to the computer by using either the Epiphan AV.io HD or the Magewell USB Capture AIO video capture device. (See more...)

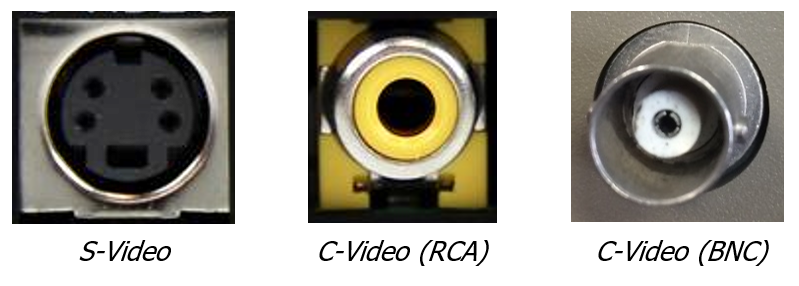

If your ultrasound machine has a "legacy" video standard (S-Video or C-Video) output (see next figure for reference), you can directly connect your ultrasound machine to the computer by using the Magewell USB Capture AIO. If you want to use the Epiphan AV.io HD, you must
first convert the video output to VGA, and then to acquire the VGA by the Epiphan AV.io HD. For the first video conversion, you can use any high-quality S-Video to VGA or C-Video to VGA converter. We suggest using the StarTech Video to VGA Converter v4.3 (See more ..)
Epiphan AV.io HD |
Magewell USB Capture AIO |
|
VGA |
Directly supported |
Directly supported |
DVI |
Directly supported |
Directly supported |
HDMI |
Directly supported |
Directly supported |
S-Video |
Conversion to VGA is required |
Directly supported |
C-Video |
Conversion to VGA is required |
Directly supported |
NOTE: Please, verify with the ultrasound machine technician that the video output of your ultrasound machine is active.
For information on the availability and the standard of the video output, please contact the manufacturer of the ultrasound system.
For additional technical information on how to connect the computer to the ultrasound apparatus and on the compatible video standards, please contact us at support@quipu.eu
CAUTION: The B-mode window in the video must have a minimal resolution of 6 pixels/mm. If present, the size of the PWD window in the image must be at least 200x100 pixels.
CAUTION: The ultrasound scanner must be in accordance with the EuropeanMedical Device Directive 93/42/EEC
Regulation (EU) 2017/745
or cleared / registered / licensed by the appropriate regulatory authority.
CAUTION: If the video converter is used with an AC/DC power adapter, it must be a medical grade power adapter according to IEC 60601-1, current edition.
