Using "legacy" video standard output

Magewell USB Capture AIO

You can directly connect your ultrasound machine to the computer by using the Magewell USB Capture AIO video capture device.

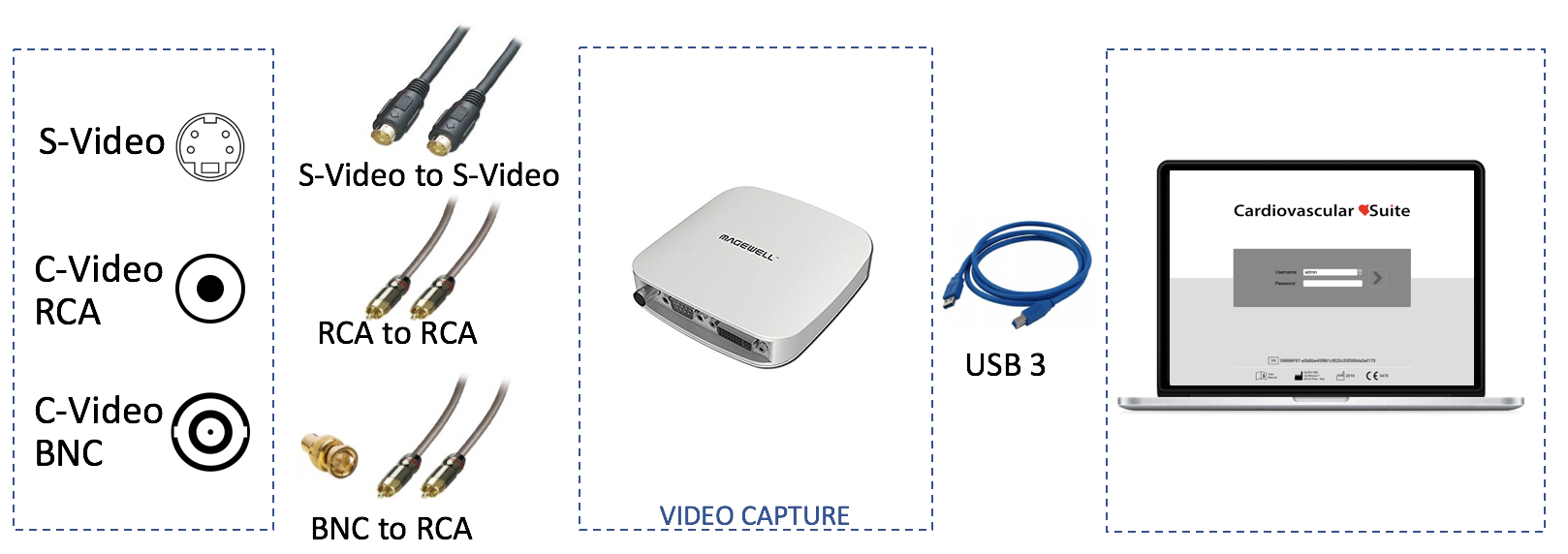

images/download/attachments/46006399/Screen_Shot_2019-09-12_at_12.09.28.png Detail of the connections based on the output video format:

  • S-Video output: use an S-Video cable to connect your ultrasound machine to the Magewell USB Capture AIO.

  • C-Video (RCA) output: use an RCA cable to connect your ultrasound machine to the Magewell USB Capture AIO.

  • C-Video (BNC) output: use a BNC-to-RCA adapter and then an RCA cable to connect your ultrasound machine to the Magewell USB Capture AIO.

Use the USB 3.0 cable to connect the video capture device to your computer. See more about Magewell USB Capture AIO.

Epiphan Av.io HD

You must first convert the video output to VGA by the StarTech Video to VGA Converter, and then to acquire the VGA by the Epiphan AV.io HD.

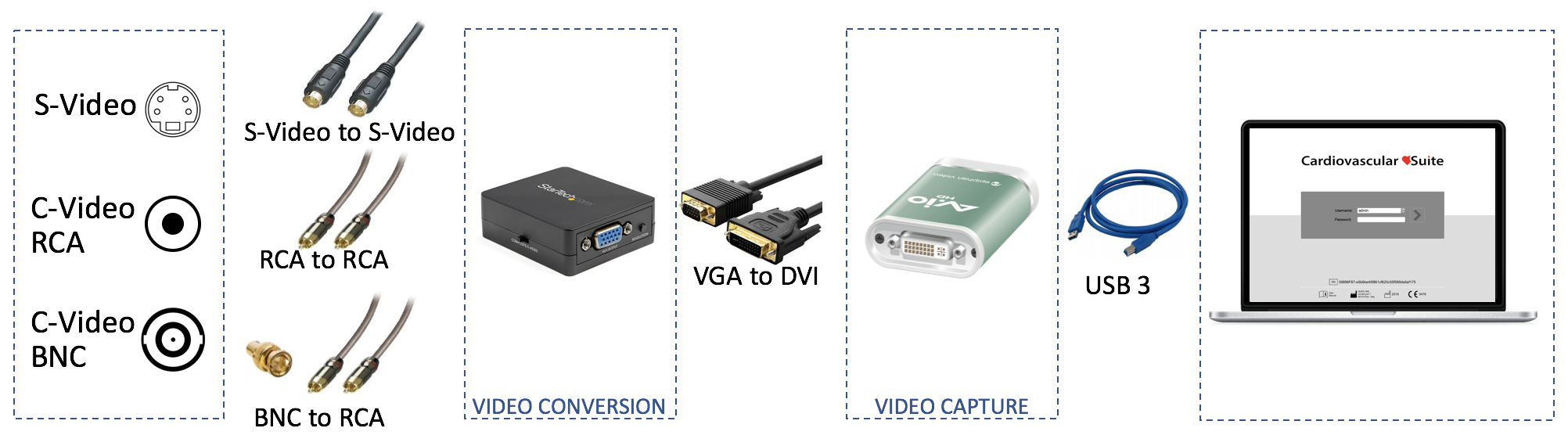

images/download/attachments/46006399/Legacy_video_Connections3.png

Detail of the connections based on the output video format:

  1. First, connect your apparatus video output to the StarTech Video to VGA Converter .

    • S-Video output: use an S-Video cable to connect your ultrasound machine to the StarTech Video to VGA Converter.

    • C-Video (RCA) output: use an RCA cable to connect your ultrasound machine to the StarTech Video to VGA Converter.

    • C-Video (BNC) output: use a BNC-to-RCA adapter and then an RCA cable to connect your ultrasound machine to the StarTech Video to VGA Converter.

  2. Once you have connected your apparatus to the StarTech Video to VGA Converter, you have to connect it to your computer by the Epiphan AV.io HD. You have to use the DVI-to-VGA cable to connect the Video Converter to the Epiphan AV.io HD. Then, use the USB 3.0 cable to connect the video capture device to your computer.

See more about the Epiphan AV.io HD.

See more about the About StarTech Video to VGA Converter .
