Using DVI2USB 3.0

Parent Previous Next

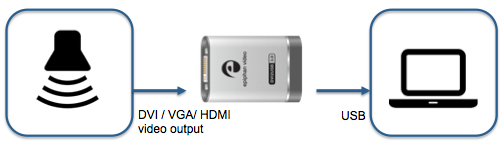

The Epiphan DVI2USB 3.0 can be used to connect your computer  to the DVI, VGA or HDMI video output of the ultrasound system.




LED COLOR

STATUS (USB 3.0)

STATUS (USB 2.0)

OFF

Video converter not connected to the computer.

Solid Red

Video converter is powered but it is not functional.

Blinking Red

Error. If this condition persists, please contact our support service.

Solid Yellow

Image/video capture or data transfer is in progress.

Flashing blue

The device is initialized and is in idle.


Flashing green

Video mode detection is in progress

The device is initialized and is in idle.

Solid Green


Video mode detection is in progress


The Epiphan DVI2USB 3.0 supports resolution of up to 1920x1200 pixels. Performance may be limited by your computer features.

The Epiphan DVI2USB 3.0 supports both USB 3.0 and USB 2.0.


CAUTION: the video converter must be connected directly to a USB port on your computer. Do not use hubs or the USB socket on the external keyboard.  Use USB 3.0 to maximize performances.


Epiphan drivers

If you are going to use this Epiphan video converter, please download and install the Epiphan drivers.

We suggest the following Epiphan driver versions:


Operating System

Epiphan Driver

MAC OS X - 10.8 Mountain Lion*

3.28.0.15 download

MAC OS X - 10.9 Mavericks*

3.28.0.15 download

MAC OS X - 10.10 Yosemite*

3.30.1.10 download

MAC OS X - 10.11 El Capitan*

3.30.3.8 download

MAC OS X - 10.12 Sierra*

3.30.3.8 download

WINDOWS 7 - 8.1 - 10 (64-bit)

3.30.2.0010 download

* technical support is no longer supported from Epiphan Systems Inc.


For more information about video converter Epiphan's DVI2USB 3.0, please see the manufacturer's instruction.
