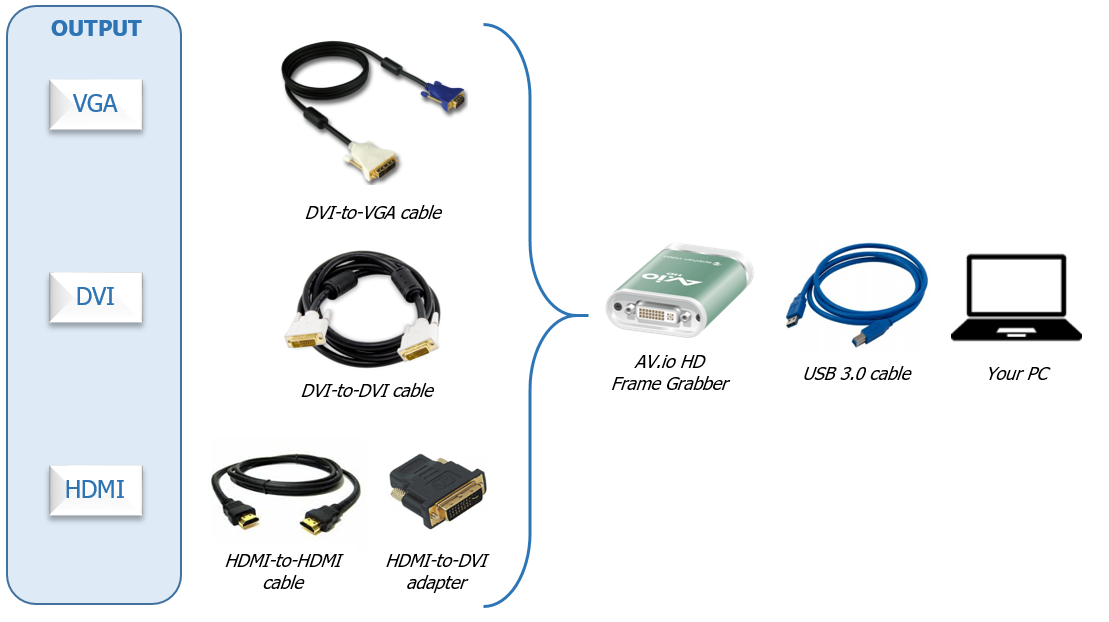

Possible configurations based on output video format:
- VGA video output: use a DVI-to-VGA cable to connect your ultrasound machine to the AV.io HD frame grabber; then use the USB 3.0 cable to connect the grabber your computer.
- DVI video output: use a DVI cable to connect your machine to the AV.io HD frame grabber; then use the USB 3.0 cable for connecting the grabber to your computer.
- HDMI video output: use an HDMI cable to connect your apparatus to the HDMI-to-DVI adapter. Then plug the adapter into the AV.io HD frame grabber and use the USB 3.0 cable to connect the grabber to your computer.
see more about the Epiphan AV.io HD Frame Grabber.
