Archive

The Archive contains:

• the studies and their documents.
• the patients.
• the operators.
• the institutes.

STUDIES AND DOCUMENTS

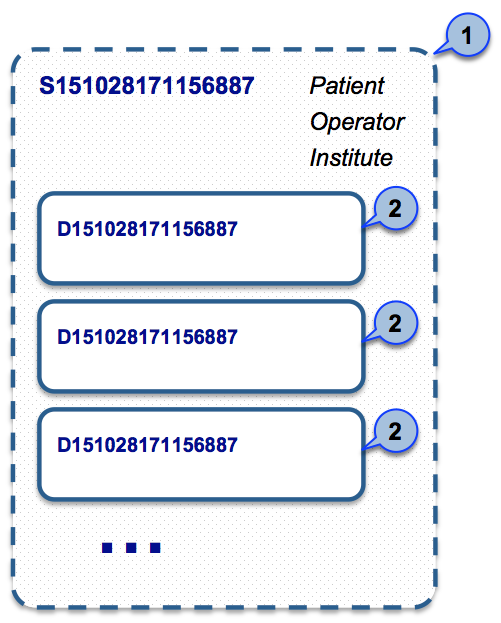

The study (1) contains the results generated by a Software Application. These results are organized into documents (2). Each documents contains the results of the analysis and can contain videos and/or images.

Each study has a unique study identification number (study ID), which is a string starting with the letter "S" and followed by 15 numeric digits.

Analogously, each document has a unique study identification number (document ID), which is a string starting with the letter "D" and followed by 15 numeric digits.

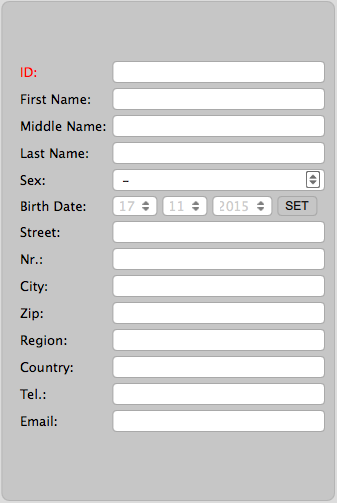

PATIENTS

The patient is the person who undergo the examination.

The archive can contain the following patient data:

• Patient ID
• First name
• Middle name
• Last Name
• Sex (it can be: "Unspecified", "Female" or "Male")
• Birth date (it can be set or "unspecified")
• Address (Street, number, City, ZIP, State/Region, Country)
• Telephone
• E-mail

You can enter the data of the patients The only mandatory field is the patient ID. If you don't enter patient ID, a random value will be automatically proposed, which is a string starting with the letter "P" and followed by 15 numeric digits.

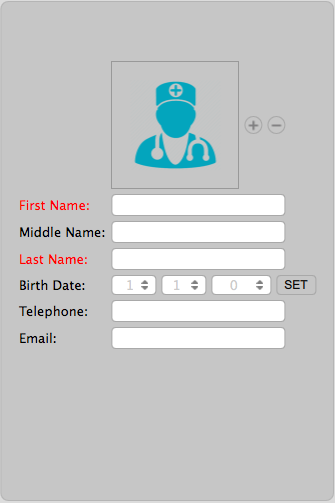

OPERATORS

The operator is the person who make the examination.

The archive can contain the following operator data:

• First name
• Middle name
• Last Name
• Birth date (it can be set or "unspecified")
• Telephone
• E-mail

You can also set a picture of the operator.

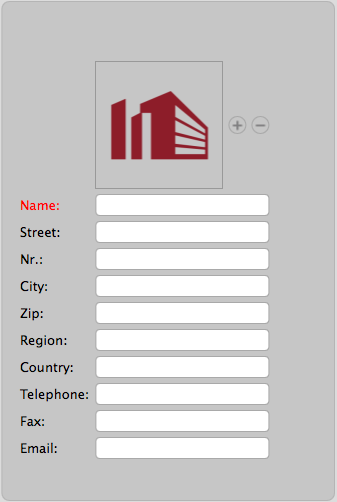

INSTITUTE

The institute is the organization where the examination is performed.

The archive can contain the following institute data:

• Name
• Address (Street, number, City, ZIP, State/Region, Country)
• Telephone
• Fax
• E-mail

You can also set a picture of the institute.
