Single image study analysis

images/download/attachments/127205535/cvs_main_singleImage_gliffy_EN.png

Carotid Studio single image modality analyses image files or a single image selected from a video file and allows to perform two different types of analysis:

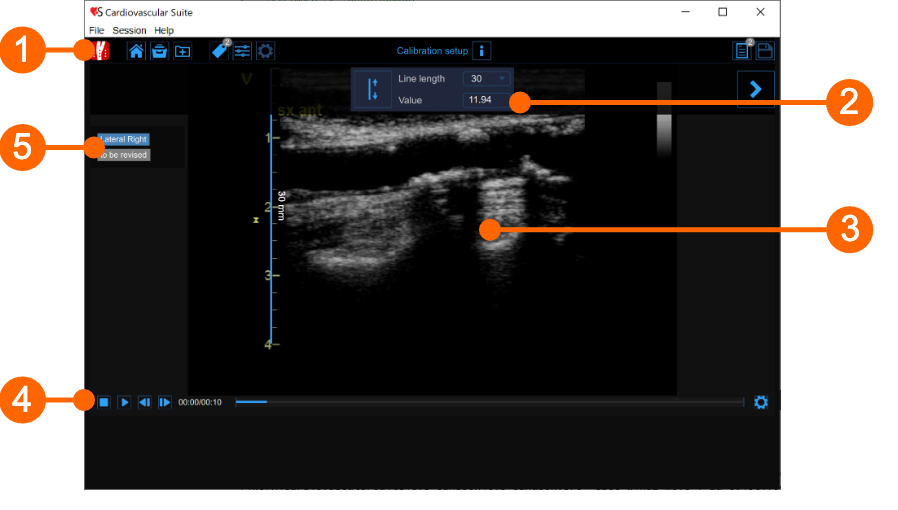

The single image analysis window contains the following components:

  1. Top bar
    images/download/attachments/127205535/CVS_Carotid_SImageAnalysis_TopBar_EN2.PNG
    The top bar contains some essential information for the navigation. Several icons are displayed.

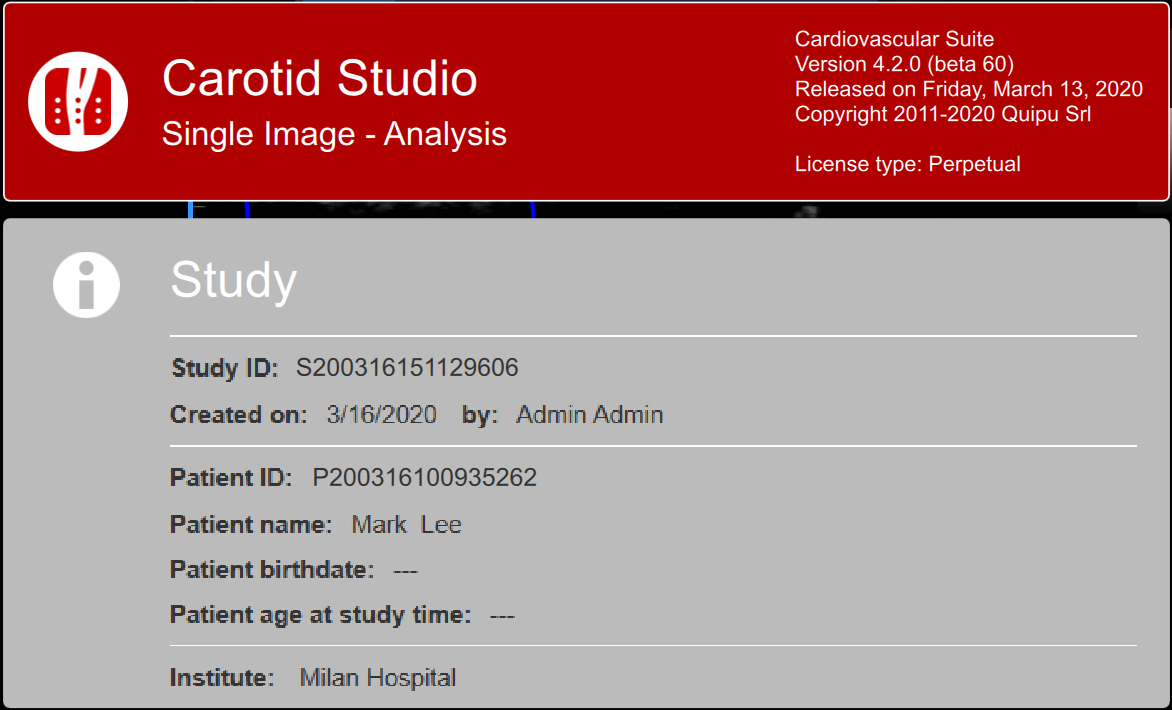

    The Carotid Studio button images/download/thumbnails/127205535/cvs_car_icon.png shows information about the study and about Cardiovascular Suite. Regarding the study, the number identification (ID) is displayed together with information about patient and the institute. Information about the software such as version and type of license are shown in the upper part of the windows, as the following figure:
    images/download/attachments/127205535/CVS_Carotid_SImageAnalysis_InfoPanel_EN.png
    The home button images/download/thumbnails/127205535/cvs_home_button.png closes the Carotid Studio application and returns to the home screen of Cardiovascular Suite.

    The Archive button images/download/thumbnails/127205535/cvs_archive_button.png closes the Carotid Studio application and returns to the archive of Cardiovascular Suite.
    The New video/image button images/download/thumbnails/127205535/cvs_newVideo_button.png allow to open a new video/image for the analysis.

    The Tags Management button images/download/thumbnails/127205535/cvs_tag_button.png opens the tag management panel as described in Tags.

    The preset management button images/download/thumbnails/127205535/cvs_preset_button.png opens the preset management panel as described in Presets.

    The Info
    images/download/thumbnails/127205535/cvs_info_button.png button shows information about active controls (calibration lines, ROI, etc.). T he
    images/download/thumbnails/127205535/cvs_settings_button.png icon is used to show the setup panel when it is hidden.

    The Freeze/Run images/download/thumbnails/127205535/cvs_freeze_button.png /images/download/thumbnails/127205535/cvs_startStudy_button.png button suspends and resume the image acquisition (present in real-time analysis only).

    The Save images/download/thumbnails/127205535/cvs_save_button.png button saves a documents of the study. The Review Documents images/download/thumbnails/127205535/cvs_documents_button.png button allows to suspend the analysis and to review the documents saved in the current analysis session. The button is only activated if you saved at least one document .

  2. Setup panel
    The setup panel must be used to Calibrate the B-mode image.

    Calibration

    The Set Calibration images/download/thumbnails/127205535/cvs_verticalCalibration_button.png
    button is used to Calibrate the B-mode image . The drop-down menu shows the length of the line used for the calibration. The numeric display shows the calibration value.

    If you click in the value field, you are allowed to manually enter the calibration value in the editable field (if you already know the value). The click the Save button to enter the values.
    images/download/thumbnails/127205535/CVS_Carotid_SimageAnalysis_CalibrationEdit_EN.png

  3. Image window
    The media window shows the media file that is analyzed.

  4. Image window control bar
    The media window control bar is at the bottom of the media window and contains controls to manage the playback of a movie (only in case of video file) and the brightness and contrast adjustment.

  5. Tags Area
    The selected tags are visible in this area. The tags area can me moved by right clicking and dragging.
