About Lindy Video to VGA Converter

Parent Previous Next

The Video to VGA Converter from Lindy (Germany) will allow you to convert your S-Video or Composite Video output to a VGA.

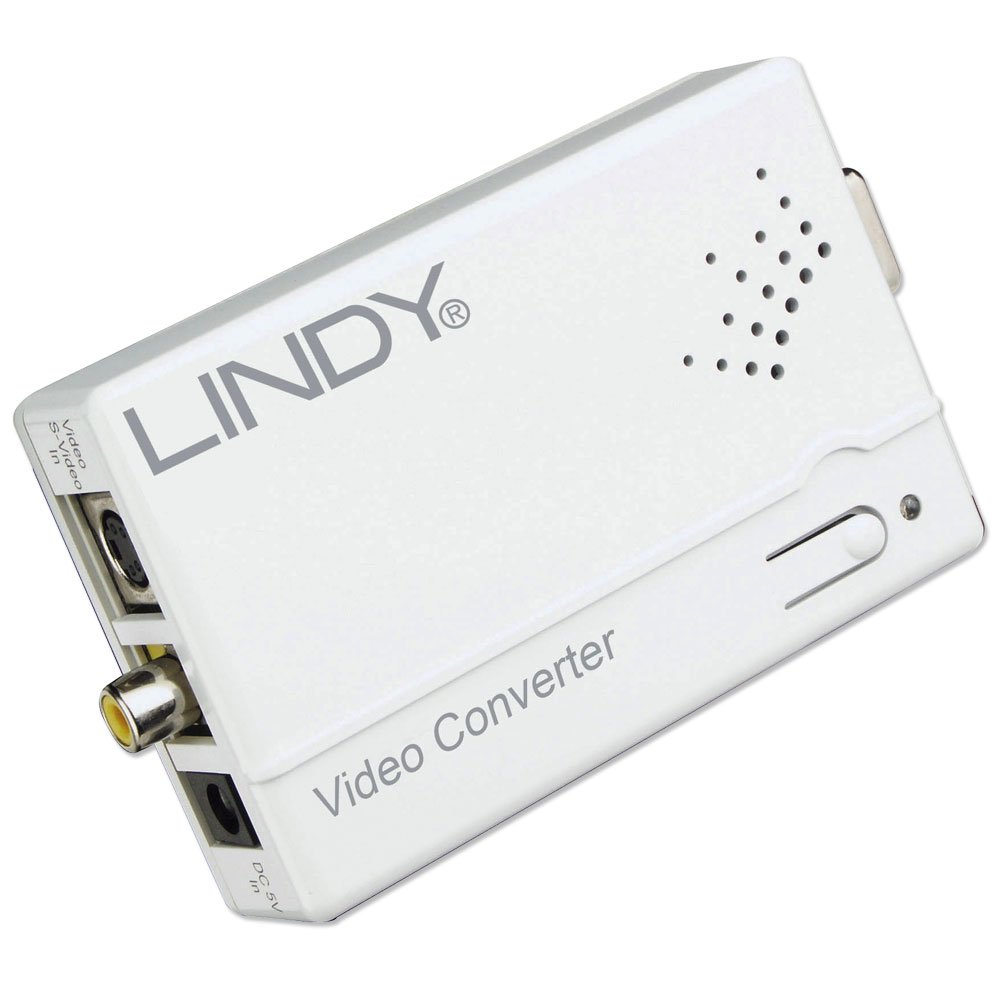

Lindy Video to VGA converter

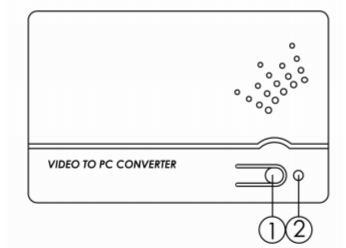

Top Panel

  1. The Input selection switch toggles between Composite and S-Video input
  2. The LED indicator shows which input signal is selected


LED COLOR

INPUT

Green

Composite input signal

Red

S-Video input signal

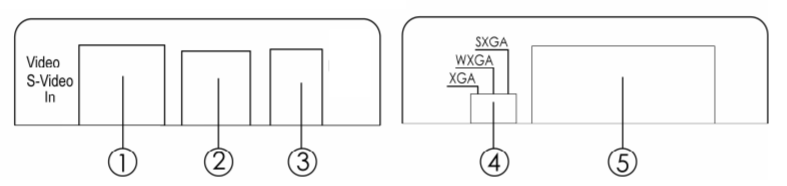

Front & Rear Panel

  1. S-Video input
  2. Composite video input
  3. DC power supply input
  4. Output resolution selection switch (we suggest to use XGA):
  1. VGA output
