Studies management
The Archive Studies and Documents section allows you to manage the studies and their documents.

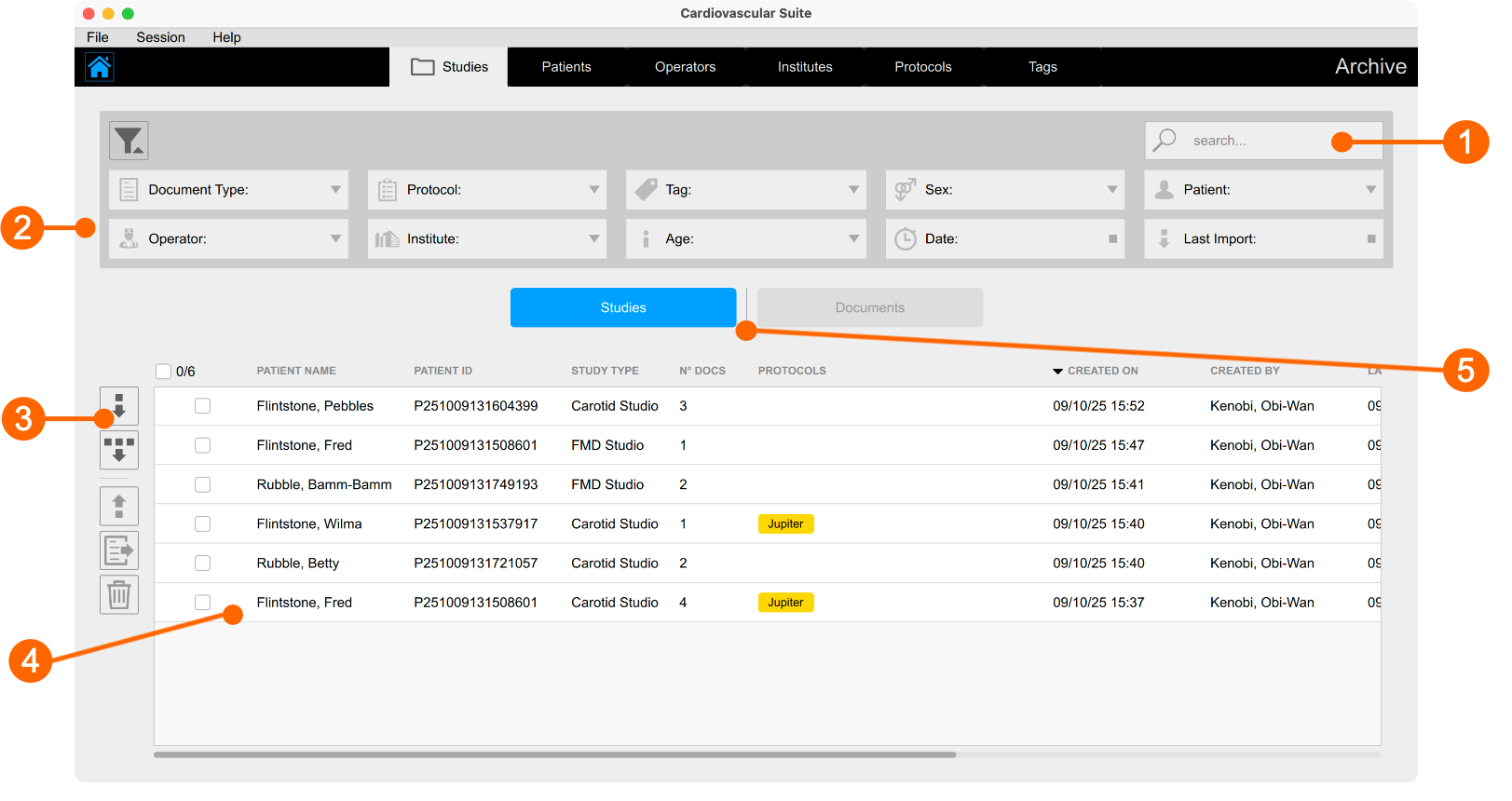

This panel is made up by a search field (1), the filter management panel (2), the control buttons (3) and a table (4) for showing the study list or the document list, depending on the selected button (5).
Searching and filtering
It is possible to perform a textual search in the Studies or Documents table thanks to the search field on the top (1).
The filter management panel (2) allows you to add filters. By clicking on the
icon, the following filters can be added:
Document type
Study Protocol
Document Tag
Patient Sex
Patient
Operator
Institute
Patient Age
Patient Birthdate
Last Imported studies

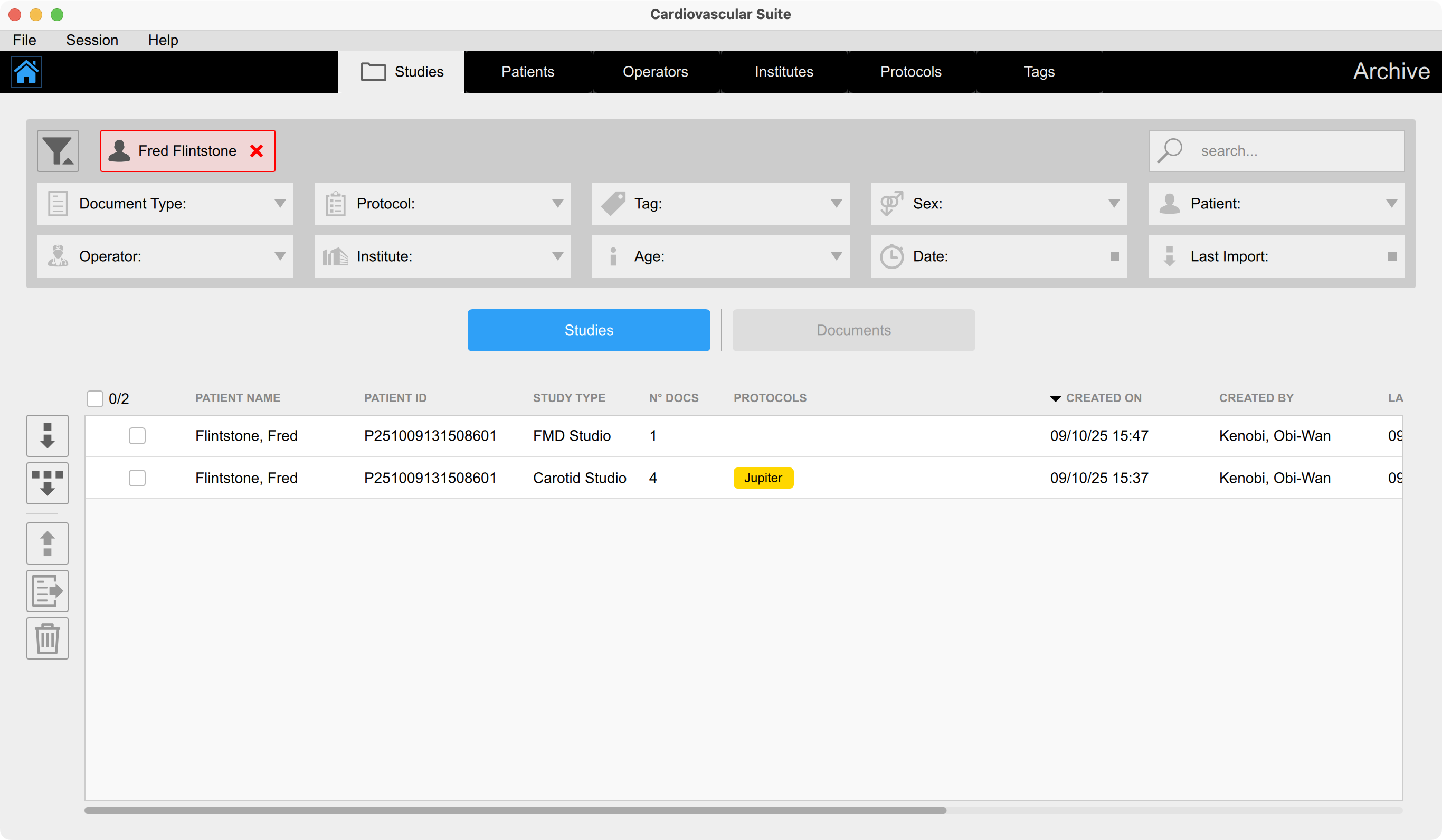

Once the filter panel is visible, it is sufficient to choose one or more filters using the dropdown menu and the table is automatically filtered. It is possible to remove one filter at a time by clicking on it, or to remove all the filters at the same time by clicking on the
icon, as show in the following picture.
Management of Studies
Selecting the Studies

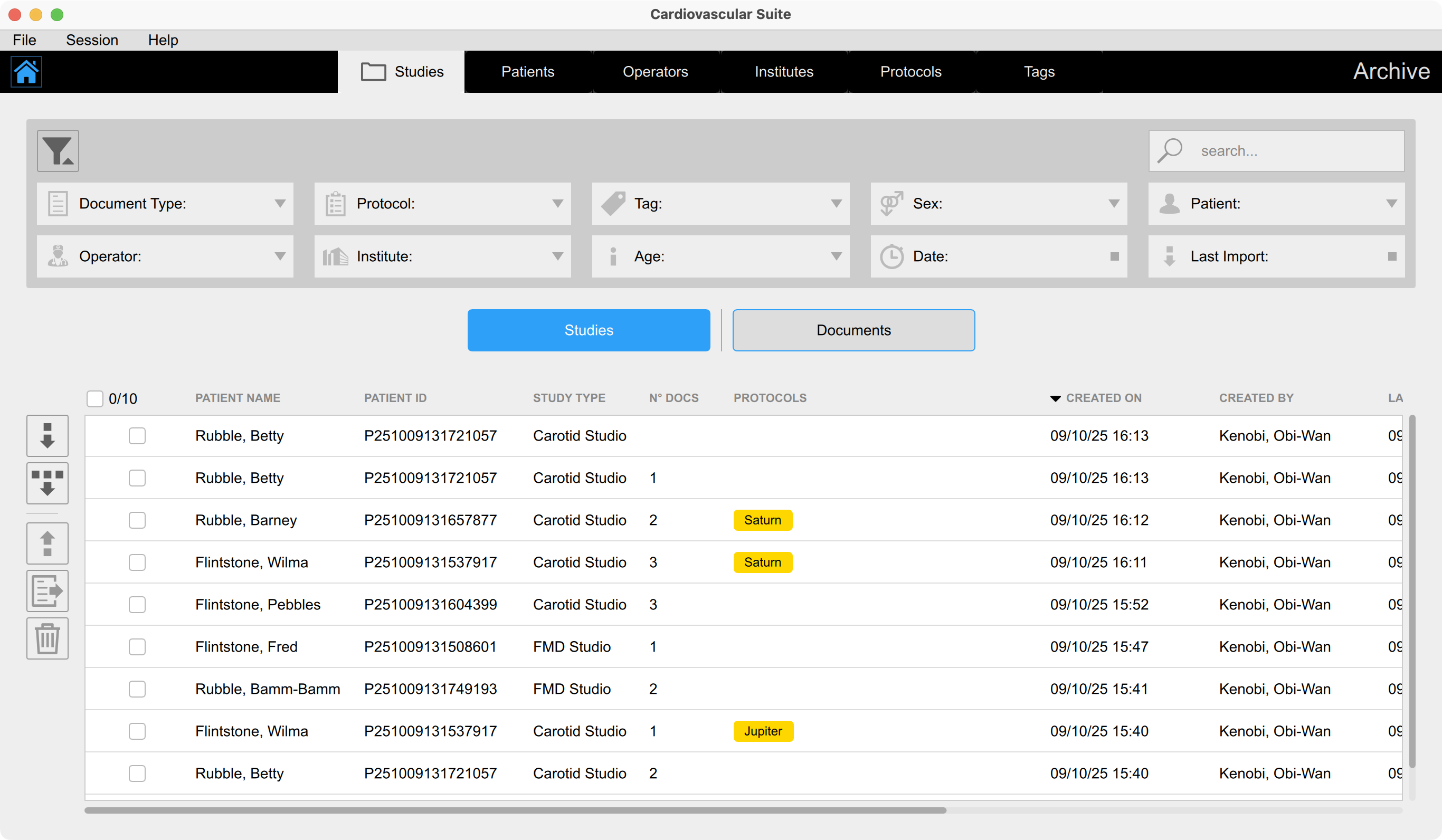

button, the Studies Table is shown, which contains all the studies performed and stored into the Archive.
Importing a study
Click on the Import Study
button.
Select the folder that contains the study to be imported, then press Open.
Importing more than one study
Click on the Import Studies
button
.
Select the folder that contains the studies to be imported, then select the studied and press Open.
Exporting a study
In the table, click on the study to be exported.
Click on the Export Study
button.
Select the destination path where you want to save your exported study, then press Save.
A report file in CVS format is created in the destination folder. It contains the details of the exported study.
Deleting a study
In the table, click on the study to be deleted.
Click on the Delete Selected Study
button.
Multiple selection
In the Studies Table multi-select feature is available. You can select more than one study and perform export and delete operation on selected studies.
In the table, select the studies through the check-box. The label over the table shows how many studies are selected from the available ones.
After you have selected studies you can export them (clicking on multiple Export
button) or delete them (clicking on Delete
button).
Exporting the documents of selected studies
It is possible to export documents of selected study/studies as CSV, TSV or PDF file.
In the table, select the study/studies to be exported
Click on the Export Documents
button. A popup with exporting options is open:
Export Document Results: it exports a TSV/CSV file containing information about the study, the document, and the computed results. You can also export a PDF report of the document.
Export Document Data: it exports a TSV/CSV file containing the results of the study and the instantaneous data.
Select the destination path where you want to save your exported documents, then press Save.
Study view

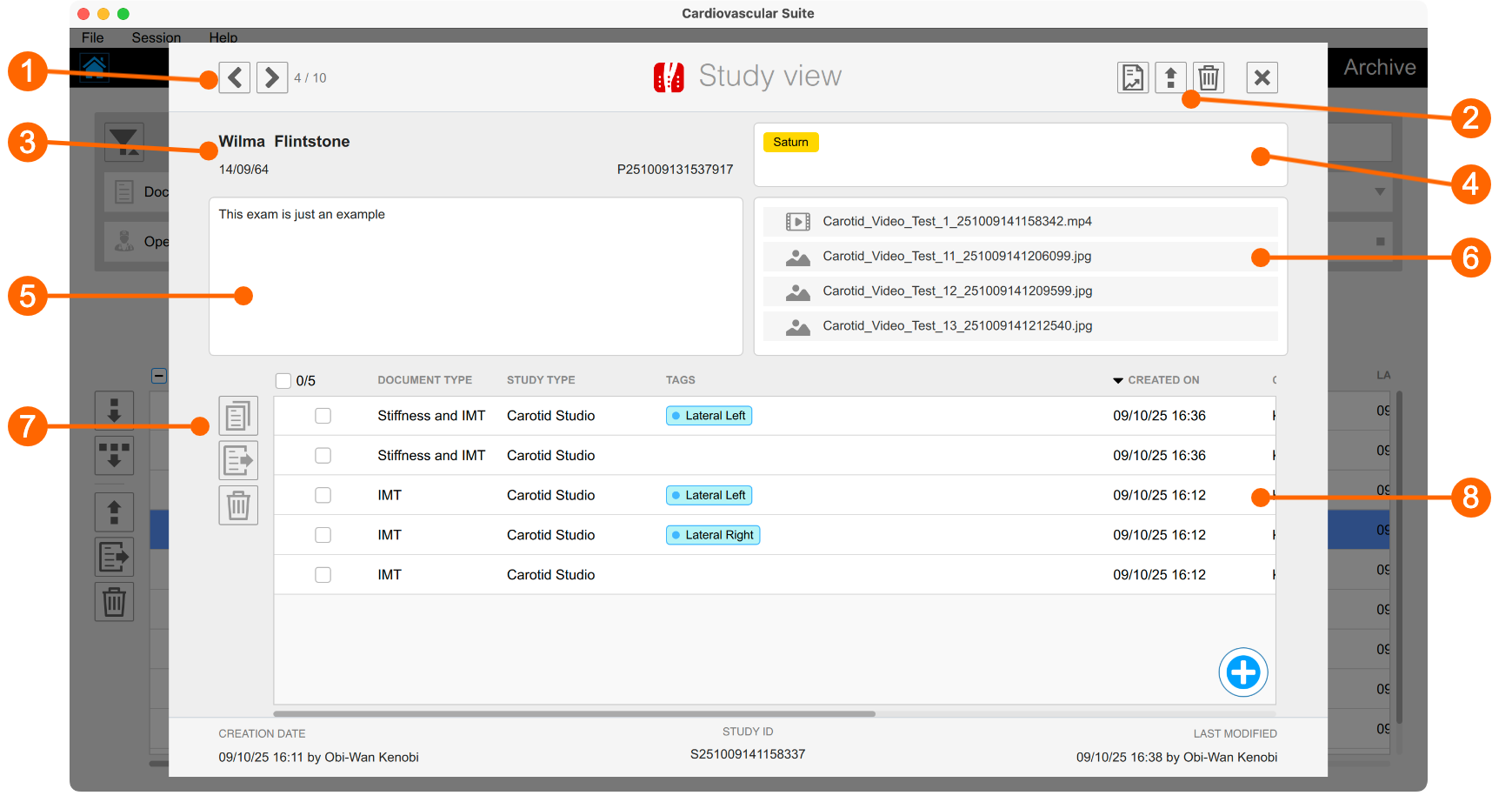

It is possible to open the study view by double clicking on it from the Studies Table . A new window containing the study is opened, as shown in the following picture.
The study view contains:
the navigation buttons (1)
the study management buttons (2)
information on the study and the patient (3).
the study protocols (4).
the study note (5).
the study media files list (6) which contains all the media files of the study.
the document management buttons (7).
the table of the study documents (8).
Study management
Click the next
or to the previous
study button to navigate among the studies.
Click the Generate study report
button to create a PDF report of the study (available for Carotid Studio only, see Study report).
Click the Export the Study
button to export the current study.
Click the Delete the Study
button to delete the current study.
You can add/remove a study protocol by clicking the protocol area (4). You can add/edit a study note by clicking the text filed (5).

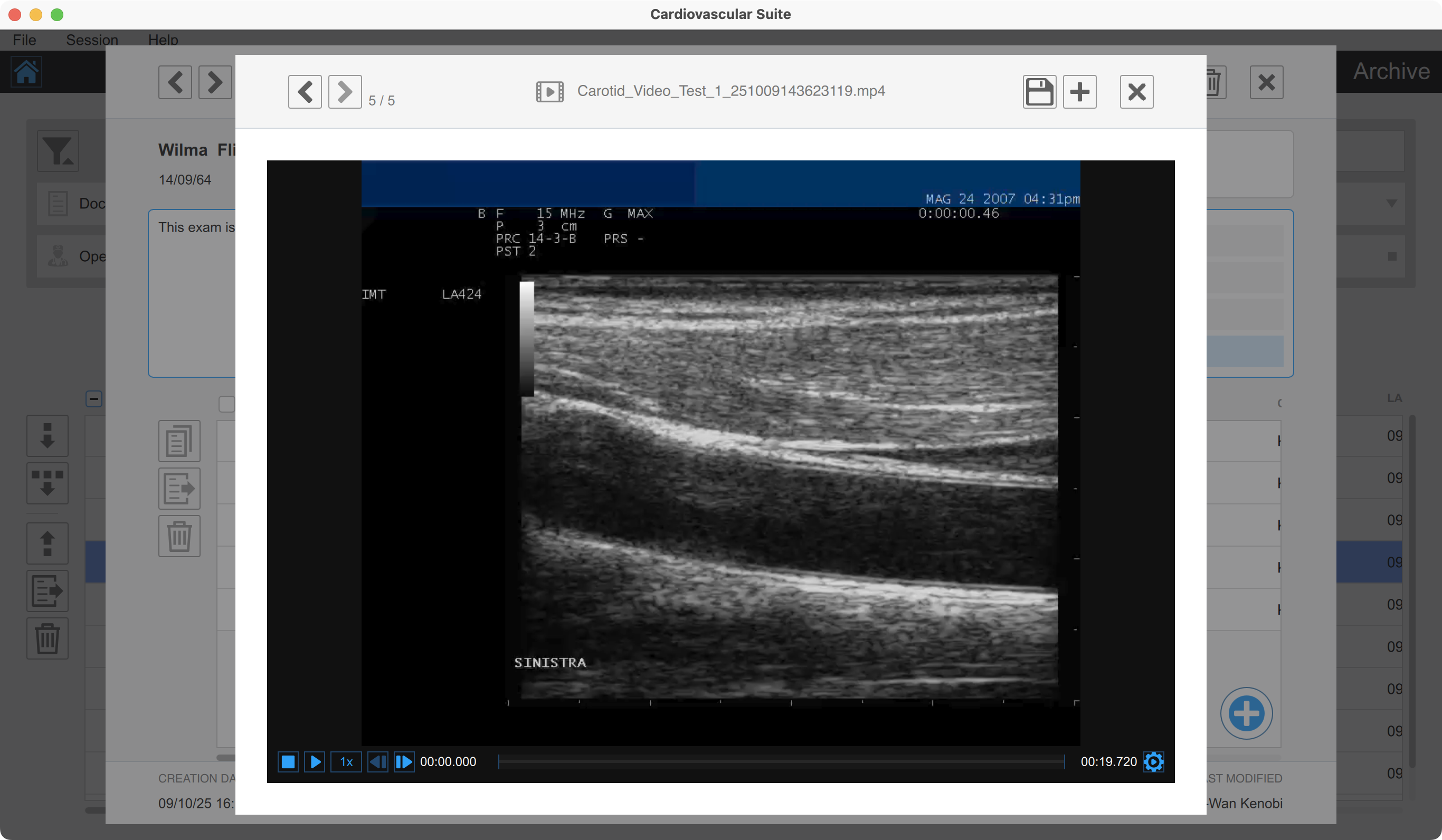

Clicking on the media files list (6) opens a window that shows the images/videos used for the analysis.
You can save the image/video with the Save
button. You can start a new analysis of the video/image by clicking the
button.
The table (8) shows the document of the current study. With the
document management buttons (7) you can
duplicate
, export
and delete
the document.
With the Add Analysis
button you can start a new analysis in the current study.
Management of Documents Table

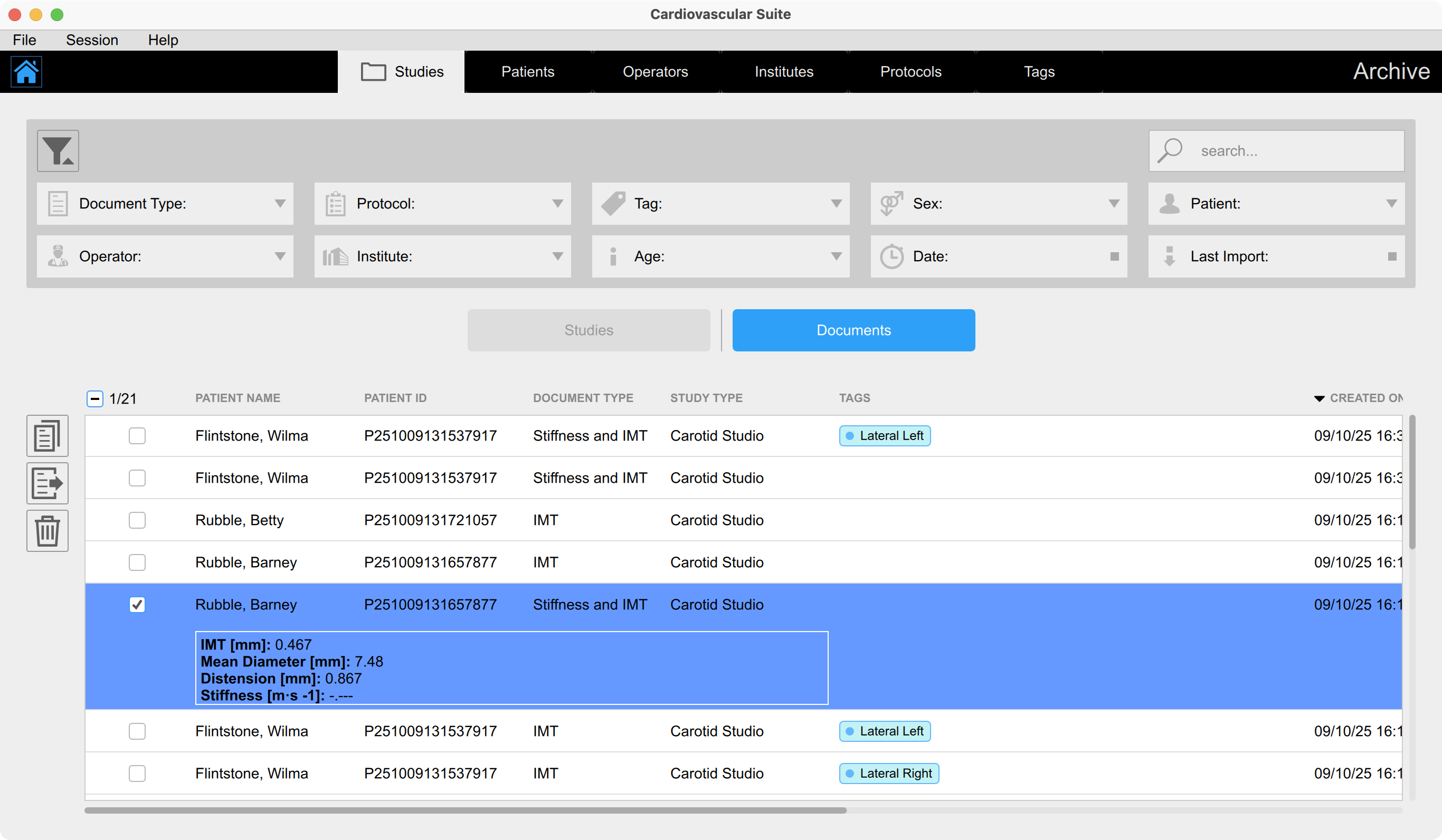

Selecting the Documents
button, the Documents Table is shown, which contains all the documents of the studies in the archive.
Opening a document
Double click on the document to be open.
The document will open in the application that created it.
Duplicating a document
In the Documents table, click on the document to be duplicated.
Click on the Duplicate Document
button.
Deleting a document
In the Documents table, click on the document to be deleted.
Click on the Delete Document
button.
Exporting a document
It is possible to export one or more documents as CSV, TSV or PDF file.
In the Documents table, select the document to be exported.
Click on the Export Document
button. A popup with exporting options is open:
Export Document Results: it exports a TSV/CSV file containing information about the study, the document, and the computed results. You can also export a PDF report of the document.
Export Document Data: it exports a TSV/CSV file containing the results of the study and the instantaneous data.
Export Aggregated Results (available only if more than a document is selected): it is also possible to export aggregated results of different documents in a single CSV or TSV file (please note that selected studies should all be of the same type).
Select the destination path where you want to save your exported documents, then press Save.
Multiple selection
In Documents Table multi-select feature is available. You can select more than one document and perform export and delete operation on selected documents.
In table, select the documents through the check-box. The label over the table shows how many documents are selected from the available ones.
After you have selected documents you can export them (clicking on Export
button) or delete them (clicking on Delete
button).
