Plaque review

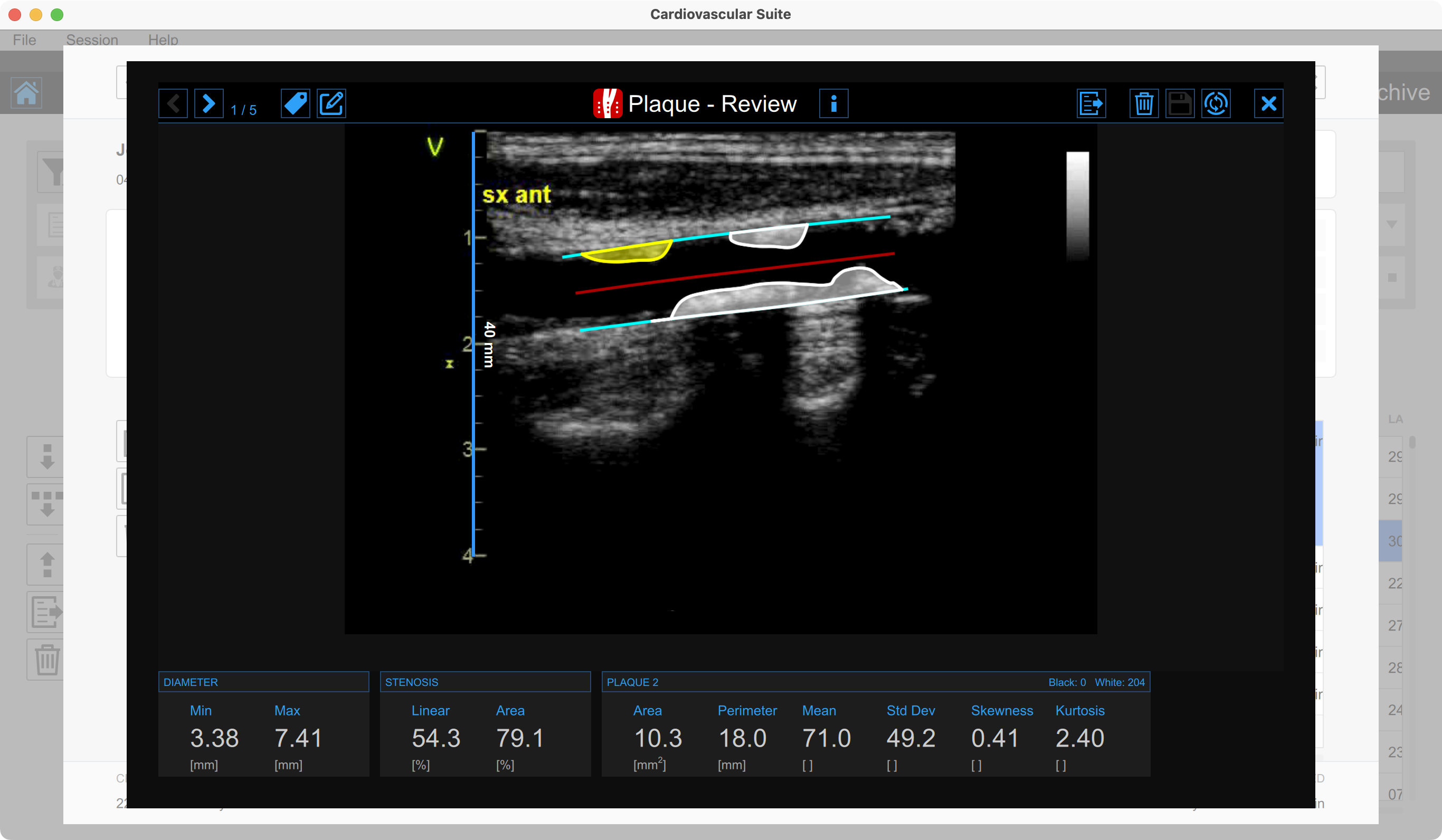

The Review window shows the result of the analysis .

In the bottom of the page, the following results are displayed:

• Min diameter [mm]: minimum value of the diameter.


• Max diameter [mm]: maximum value of the diameter.

• Linear stenosis [%]: percent of linear stenosi (computed on the diameter)

• Area stenosis [%]: percent of area stenosi (computed on the cross section area)

• Plaque area [mm²]: area of the selected plaque

• Plaque perimeter [mm]: perimeter of the selected plaque

• Plaque mean []: mean value of the grey levels in the selected plaque

• Plaque std dev []: standard deviation of the grey levels in the selected plaque

• Plaque skewness []: skewness of the grey levels in the selected plaque

• Plaque kurtosis []: kurtosis of the grey levels in the selected plaque
