IMT review

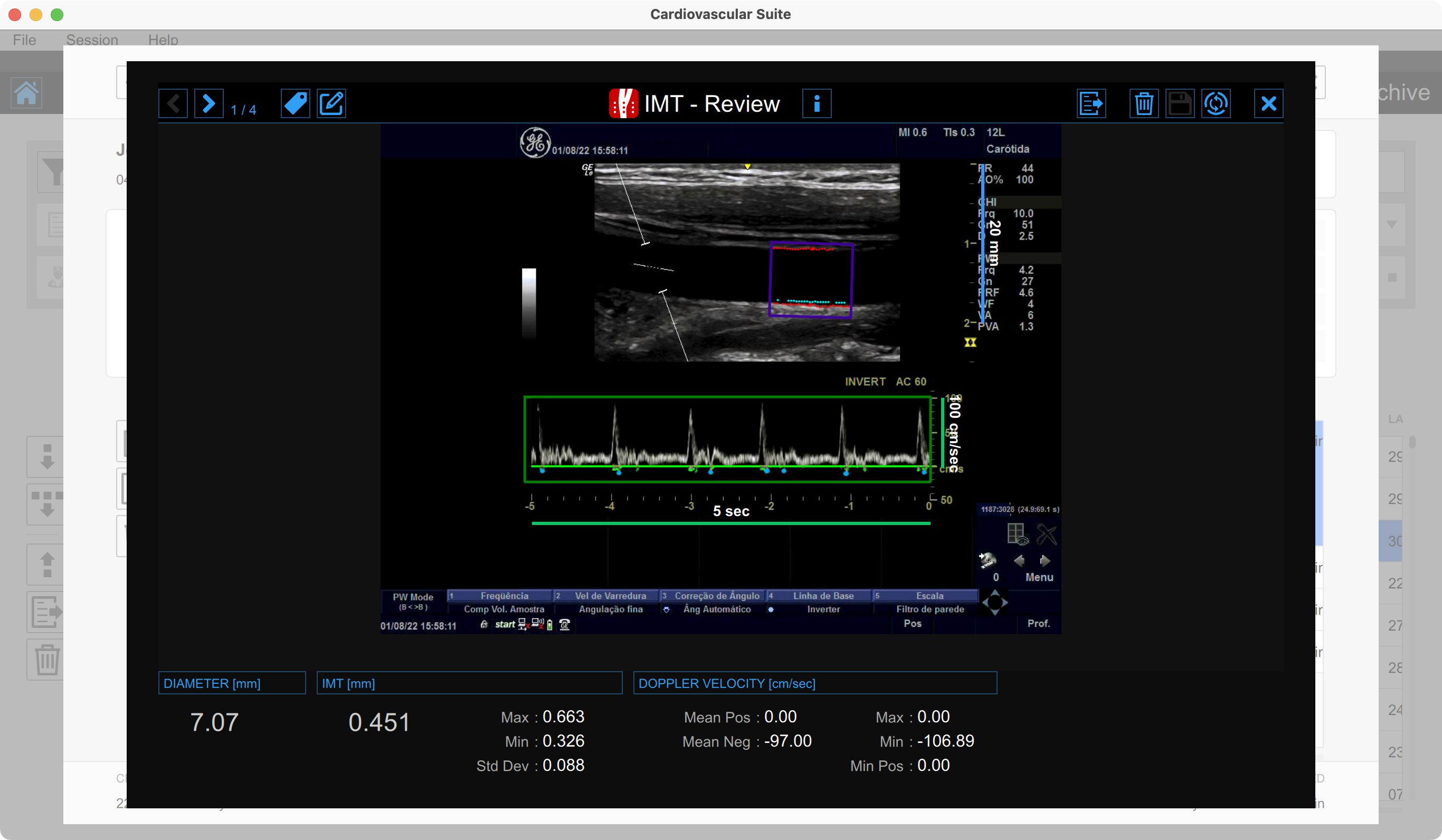

The Review window shows the result of the analysis .

images/download/attachments/388694282/CVS_CAR_Review_IMT_EN-version-1-modificationdate-1761833873568-api-v2.png


In the bottom of the page, the following results are displayed:

  • Diameter [mm] : value of the average diameter. It is computed as an average value of the data present in the ROI.

  • IMT [mm]: Intima Media Thickness. It is computed as an average value of the data present in the ROI .

  • Max IMT [mm]: minimum value of Intima Media Thickness. It is computed on the data present in the ROI .

  • Min IMT [mm]: maximum value of Intima Media Thickness. It is computed on the data present in the ROI .

  • Std. dev IMT [mm]: standard deviation of Intima Media Thickness. It is computed on the data present in the ROI .


  • Mean Pos Doppler Velocity[cm/sec]: average of the positive Doppler velocity values. It is computed as an average on all the values in Doppler ROI.

  • Mean Neg Doppler Velocity[cm/sec]: average of the negative Doppler velocity values. It is computed as an average on all the values in Doppler ROI.

  • Max Doppler Velocity[cm/sec]: maximum value of the Doppler velocity. It is computed averaging the maxima in Doppler ROI.

  • Min Doppler Velocity[cm/sec]: minimum value of the Doppler velocity. It is computed averaging the minima in Doppler ROI.

  • Min Pos Velocity[cm/sec]: minimum value of the positive Doppler velocity. It is computed averaging the minima in Doppler ROI.
