Results - Plaque

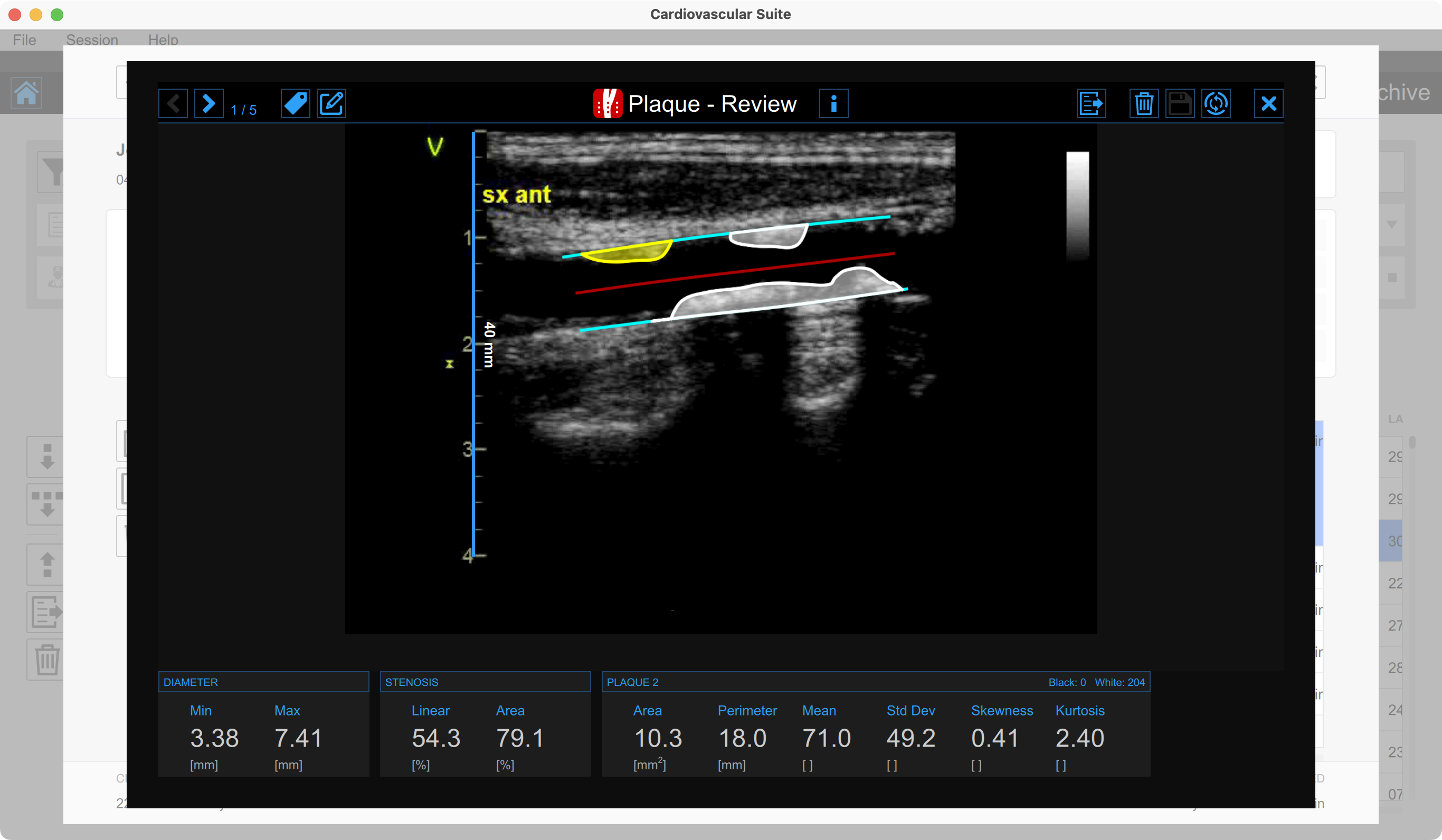

The Review window shows the result of the analysis .

images/download/attachments/388694334/CVS_CAR_Review_Plaque_EN-version-1-modificationdate-1761834587317-api-v2.png

In the bottom of the page, the following results are displayed:

  • Min diameter [mm]: minimum value of the diameter.

  • Max diameter [mm]: maximum value of the diameter.


  • Linear stenosis [%]: percent of linear stenosi (computed on the diameter)

  • Area stenosis [%]: percent of area stenosi (computed on the cross section area)


  • Plaque area [mm2]: area of the selected plaque

  • Plaque perimeter [mm]: perimeter of the selected plaque

  • Plaque mean []: mean value of the grey levels in the selected plaque

  • Plaque std dev []: standard deviation of the grey levels in the selected plaque

  • Plaque skewness []: skewness of the grey levels in the selected plaque

  • Plaque kurtosis []: kurtosis of the grey levels in the selected plaque
