Video window

images/download/attachments/34047856/cvs_videoWindow_cineloopReview_gliffy_EN.png

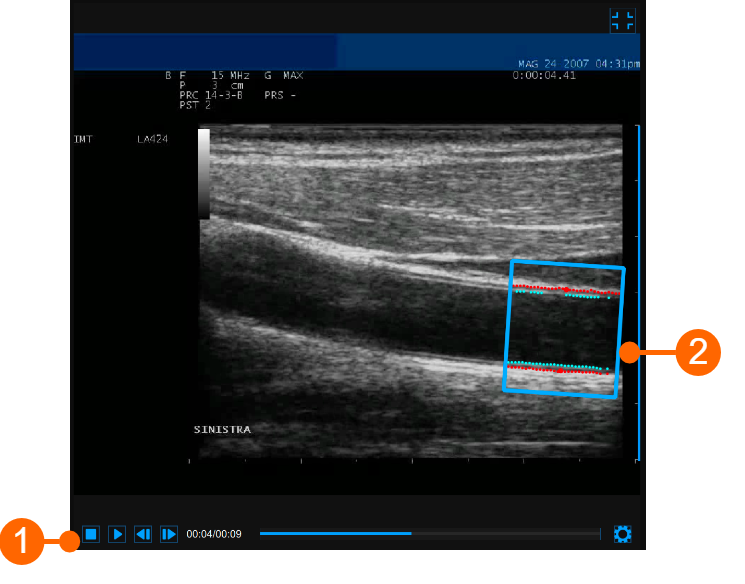

The video window shows the video signal from your ultrasound system. The points of the Lumen-Intima interface and the Media-Adventitia interface are displayed within the ROI (2) in cyan color.

The video control bar (1) is located at the bottom of the window.

If you want to expand the video window, you have to click on the Enlarge images/download/thumbnails/34047856/cvs_enlarge_button.png button.

images/download/attachments/34047856/CVS_Carotid_CineloopReview_VideoWindow2.png

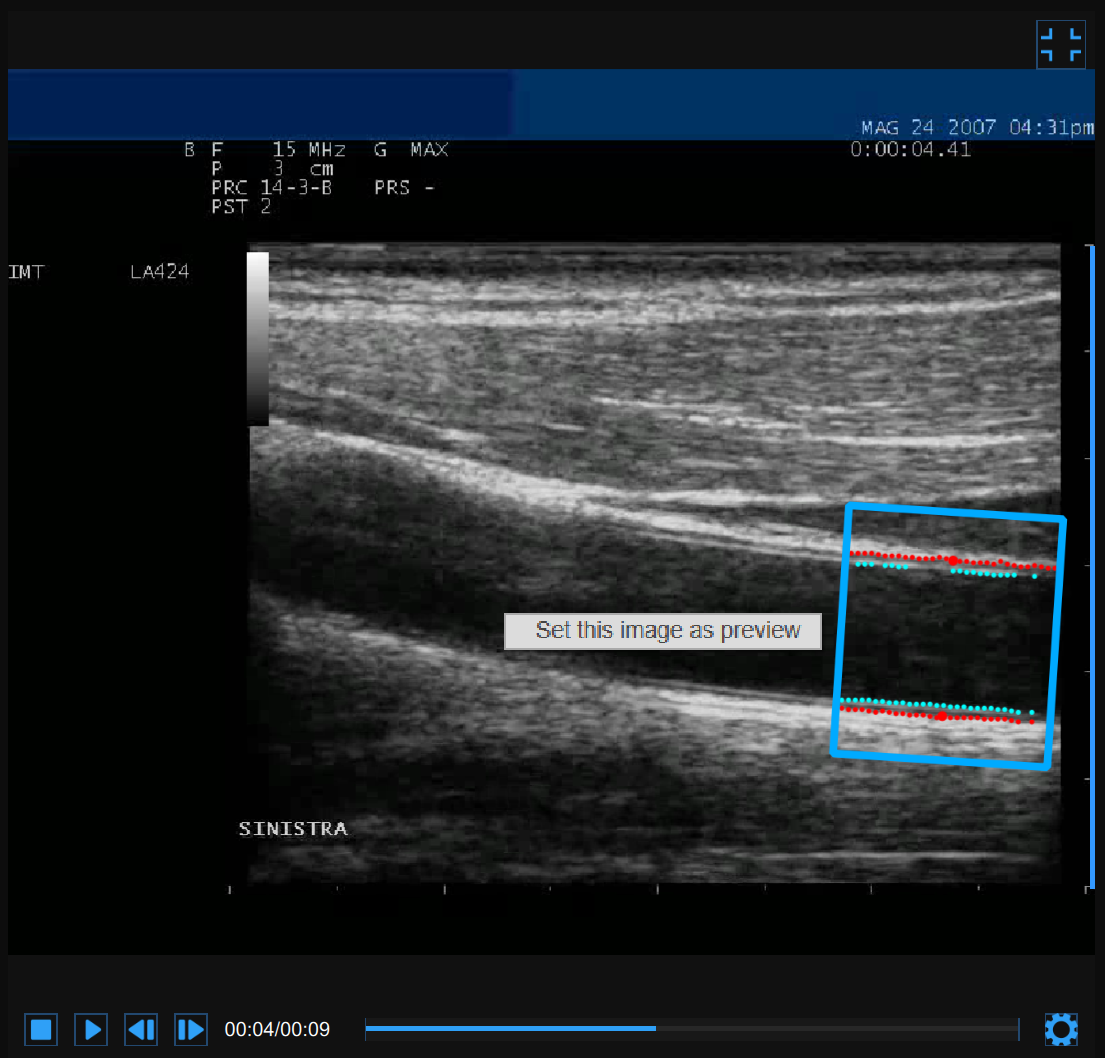

If you perform right click on the video window and click on "Set this image as preview" the current frame will be saved and displayed in the Documents Table as document preview (see Studies management ).
