Using VGA/DVI/HDMI output

You can directly connect your ultrasound machine to the computer by using either the Epiphan AV.io HD or the Magewell USB Capture AIO video capture device.

images/download/attachments/34047730/Screen_Shot_2019-09-12_at_11.59.22.png

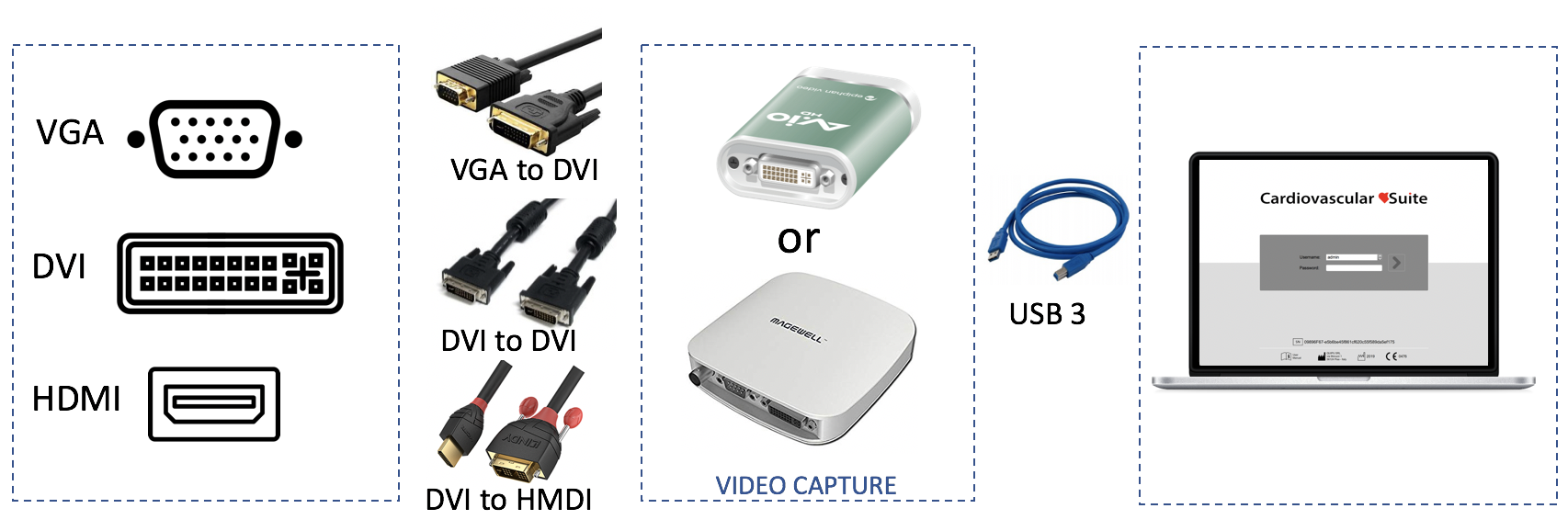

Detail of the connections based on the output video format:

  • VGA video output: use a VGA-to-DVI cable to connect your ultrasound machine to the Epiphan AV.io HD or the Magewell USB Capture AIO; then use the USB 3.0 cable to connect the video capture device to your computer.

  • DVI video output: use a DVI cable to connect your machine to the Epiphan AV.io HD or the Magewell USB Capture AIO; then use the USB 3.0 cable for connecting the video capture device to your computer.

  • HDMI video output: use an HDMI to DVI cable to connect your ultrasound machine to the Epiphan AV.io HD or the Magewell USB Capture AIO; then use the USB 3.0 cable to connect the video capture device to your computer.

See more about the Epiphan AV.io HD or the Magewell USB Capture AIO.
