Top bar

The top bar contains some essential information for the navigation. Several icons are displayed.

images/download/attachments/127205472/CVS_Carotid_CineloopAnalysis_TopBar_EN3.PNG

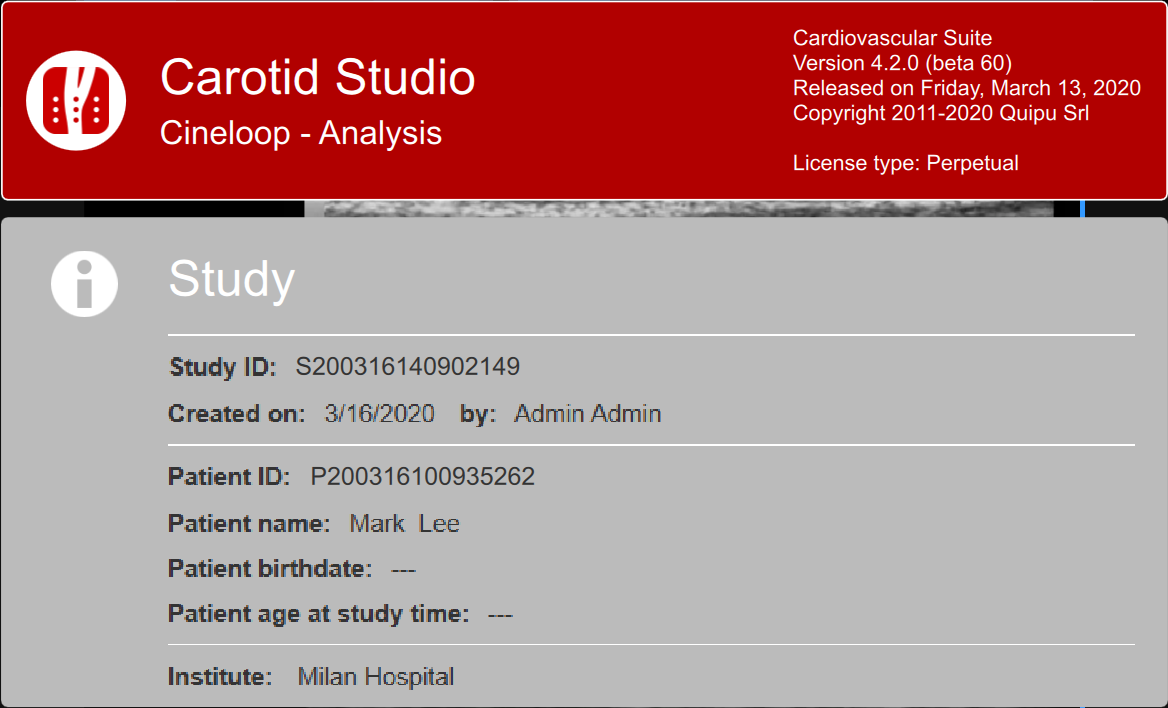

The Carotid Studio images/download/thumbnails/127205472/cvs_car_icon.png button shows information about the study and about Cardiovascular Suite. Regarding the study, the number identification (ID) is displayed together with information about patient and the institute. Information about the software such as version and type of license are shown in the upper part of the windows, as the following figure:

images/download/attachments/127205472/CVS_Carotid_CineloopAnalysis_InfoPanel_EN.png

The Home button images/download/thumbnails/127205472/cvs_home_button.png closes the Carotid Studio application and returns to the home screen of Cardiovascular Suite.

The Archive button images/download/thumbnails/127205472/cvs_archive_button.png closes the Carotid Studio application and returns to the archive of Cardiovascular Suite.

The New video button images/download/thumbnails/127205472/cvs_newVideo_button.png allow to open a new video for the analysis.

The Tags Management button images/download/thumbnails/127205472/cvs_tag_button.png opens the tag management panel as described in Tags.

The Preset Management images/download/thumbnails/127205472/cvs_preset_button.png button opens the preset management panel as described in Presets.

The Setup Panel images/download/thumbnails/127205472/cvs_settings_button.png button is used to show the setup panel when it is hidden.

The Info images/download/thumbnails/127205472/cvs_info_button.png button shows information about active controls (calibration lines, ROI, etc.).

The Start Exam images/download/thumbnails/127205472/cvs_startStudy_button.png button starts the examination. While the analysis is collecting data, a red led images/download/thumbnails/127205472/cvs_recPlayer_button.png advises that the recording is in progress.

The Save images/download/thumbnails/127205472/cvs_save_button.png button saves a document of the study. With the Cancel images/download/thumbnails/127205472/cvs_clear_button.png button it is possible to cancel the analysis and delete data in the Diameter and IMT charts.
The Review Documents images/download/thumbnails/127205472/cvs_documents_button.png button allows to suspend the analysis and to review the documents saved in the current analysis session. The button is only activated if you saved at least one document
.
