Plaque review

images/download/attachments/128155760/cvs_plaqueReview_gliffy_EN.png

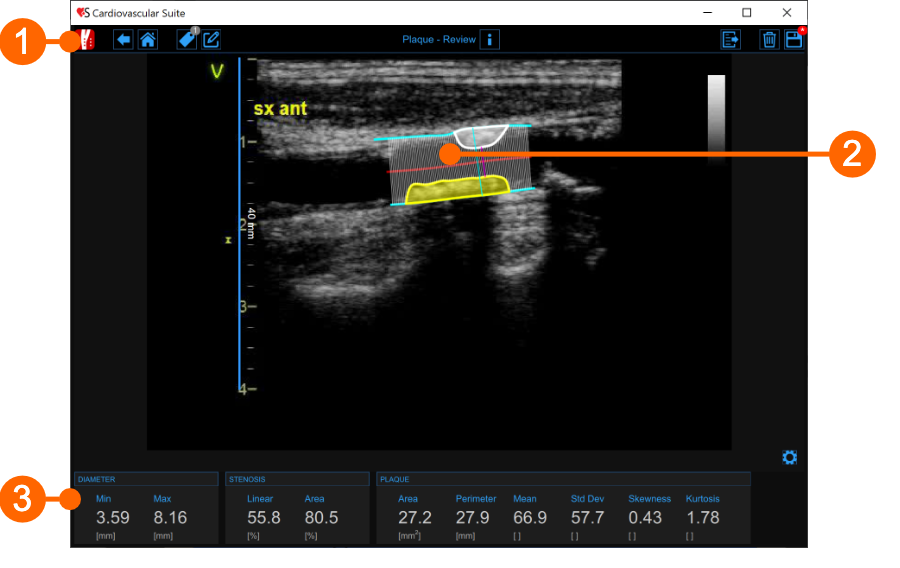

The Review window contains the following components:

1. Top bar

The top bar contains some essential information for the navigation.

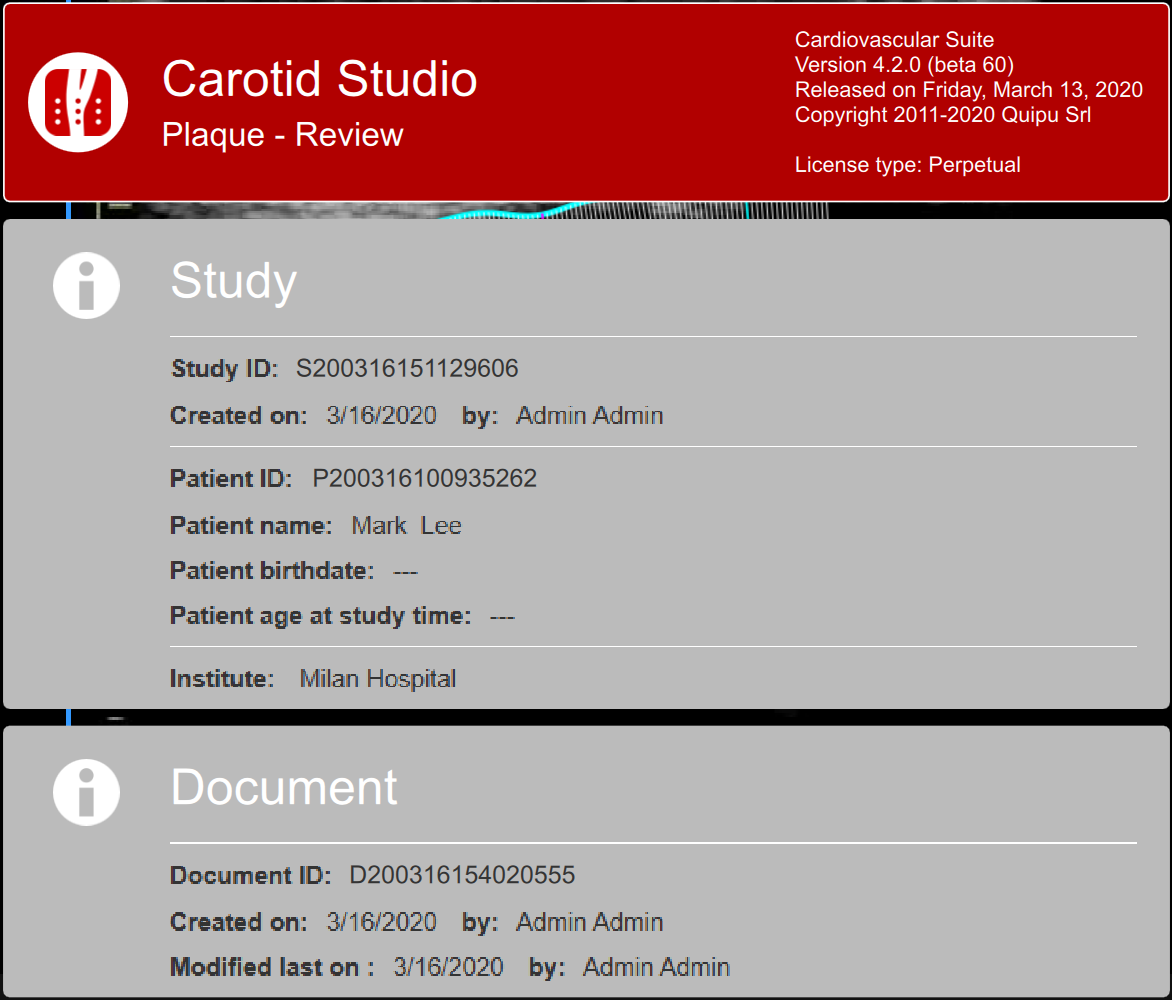

The Carotid Studio button images/download/thumbnails/128155760/cvs_car_icon.png shows a panel containing some information about Cardiovascular Suite, about the current study and the current document. Regarding the study, the study ID is displayed together with information about the patient and the institute. In addition, info regarding the current document are provided. Information about the software, such as version and type of license, are shown in the upper part of the panel.

images/download/attachments/128155760/CVS_Carotid_PlaqueReview_InfoPanel_EN.png
The Home images/download/thumbnails/128155760/cvs_home_button.png button
closes the Carotid Studio application and returns to the home screen of Cardiovascular Suite. The Back images/download/thumbnails/128155760/cvs_back_button.png button closes Carotid Studio and goes back to the Archive.

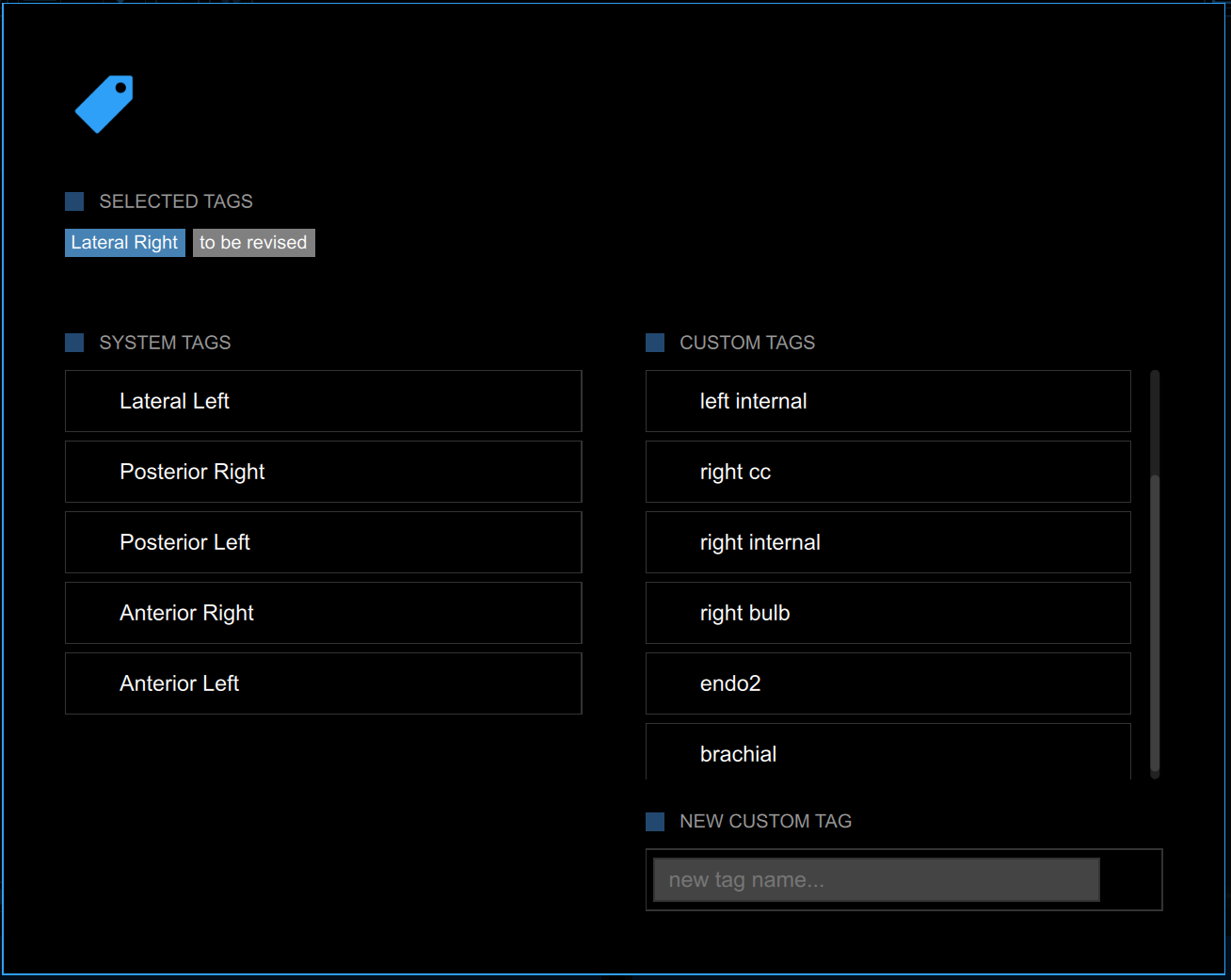

The Tags Management images/download/thumbnails/128155760/cvs_tag_button.png button opens a panel (see the following picture) that allows to create a new tag and associate it or an existing tag to the document. Tags can be managed through the Tags management into the Archive.
images/download/attachments/128155760/CVS_Carotid_PlaqueReview_Tags3_EN.PNG

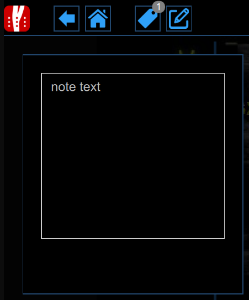

The Notes images/download/thumbnails/128155760/cvs_notes_button.png button can be used to enter a note in the document.

images/download/thumbnails/128155760/CVS_Carotid_CineloopReview_Notes_EN.PNG

The Save images/download/thumbnails/128155760/cvs_save_button.png button is used to save your changes to the document, once you have edited the data.

The Delete the document images/download/thumbnails/128155760/cvs_trash_button.png button is used to delete the current document.

The Export images/download/thumbnails/128155760/cvs_exportDocument_button.png button is used to export your data. You can export the Document Results that contains all the results of the analysis and all the information about the study, the document and the patient.

2. Media window
The media window shows the media file that has been analysed. It shows the plaque analysis tool and the calibration line used. It displays also the drawn plaques.


3. Results panel

The panel shows the results of the analysis. The following data are displayed:

  • Min diameter [mm]: minimum value of the diameter.

  • Max diameter [mm]: maximum value of the diameter.

  • Linear stenosis [%]: percent of linear stenosi (computed on the diameter)

  • Area stenosis [%]: percent of area stenosi (computed on the cross section area)

  • Plaque area [mm2]: area of the plaque

  • Plaque perimeter [mm]: perimeter of the plaque

  • Plaque mean []: mean value of the grey levels in the plaque

  • Plaque std dev []: standard deviation of the grey levels in the plaque

  • Plaque skewness []: skewness of the grey levels in the plaque

  • Plaque kurtosis []: kurtosis of the grey levels in the plaque
